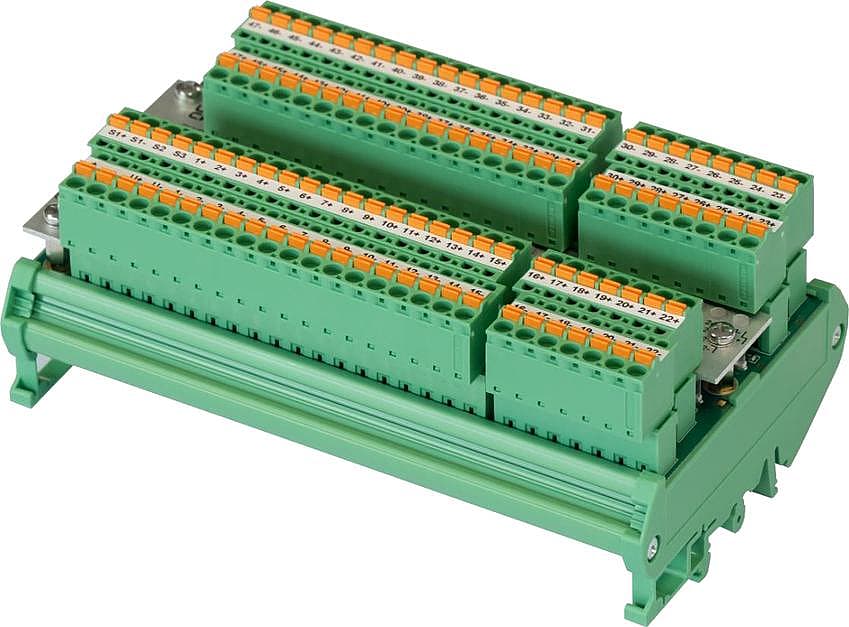

AHD-PS 47 C - Compact Binary Station With 47 Inputs

AHD-PS 47C has been developed based on the established binary station AHD-PS 47 for spacesaving installation, for example in Control cabinets.

AHD-PS 47 C has 47 inputs for the acquisition of binary signals. The inputs are current controlled to reduce the influence of potential shifts. The status of each input is signaled by an LED. The signals acquired at the inputs are transmitted with a serial connecton to a data station of the Böning system, usually an AHD-DPU 9. The data station processes the data, triggers alarms if necessary, and sends the status over the CAN bus to panel PCs and displays for visualization.
