CHOMARAT Textiles Industries SAS
Technical textile group for composites
CHOMARAT is a French industrial textile group, with a large range of know-how based on mastery of complex technologies. For Marine Composites Industry, Chomarat provides a large spectrum of technical reinforcements (woven, tapes, multi-axial fabrics) with glass, aramid or carbon fibers.. The family-owned company employs 1100 people in 4 countries (France, Tunisia, the United States, and China). Looking to the future, the Chomarat Group aims to engage in responsible development.
STAND NUMBER:
12.712
CATEGORIES:
Product category
Marina equipment, boatyard equipment and boat construction tools and materials:
Marina and Yard Equipment, Trailers, Transport
EVENT:
METSTRADE 2024
ADDRESS:
39 avenue Chabannes 07160 LE CHEYLARD France
WEBSITE:
Products
View all products

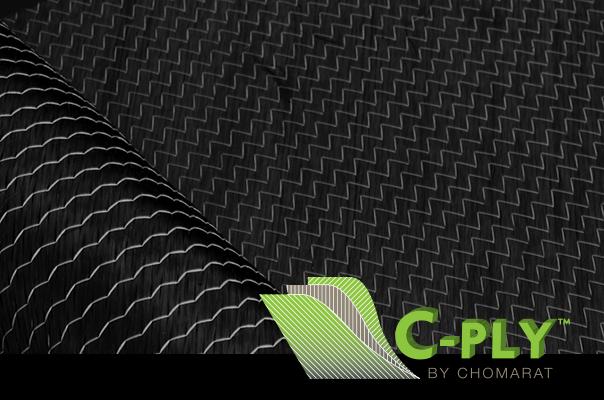

C-PLY™
Non-crimp multiaxial (NCF) carbon fabrics.
C-PLY™ is a leading edge carbon NCF reinforcement allowing structural design benefits, premium surface quality and overall part cost savings.G-FLOW™

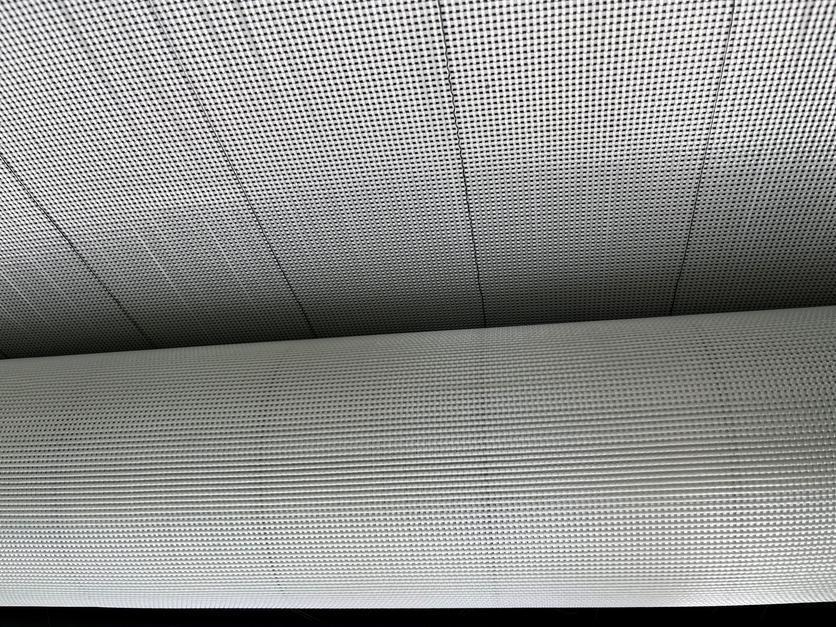

G-FLOW™ is a structural flow media made with glass fibers for closed mold processes.
G-FLOW™ is a structural flow media made with glass fibers for infusion and RTM process. By its innovative design, it can drain the resin during infusion withoutadding an external or internal flow media. It provides high mechanicals properties. It allows faster infusion compare to external flow media. It is 100 x more permeable than traditional reinforcements as NCF or Woven Roving. G-FLOW™ offers the best compromise between mechanical properties and flow performance.C-WEAVE™

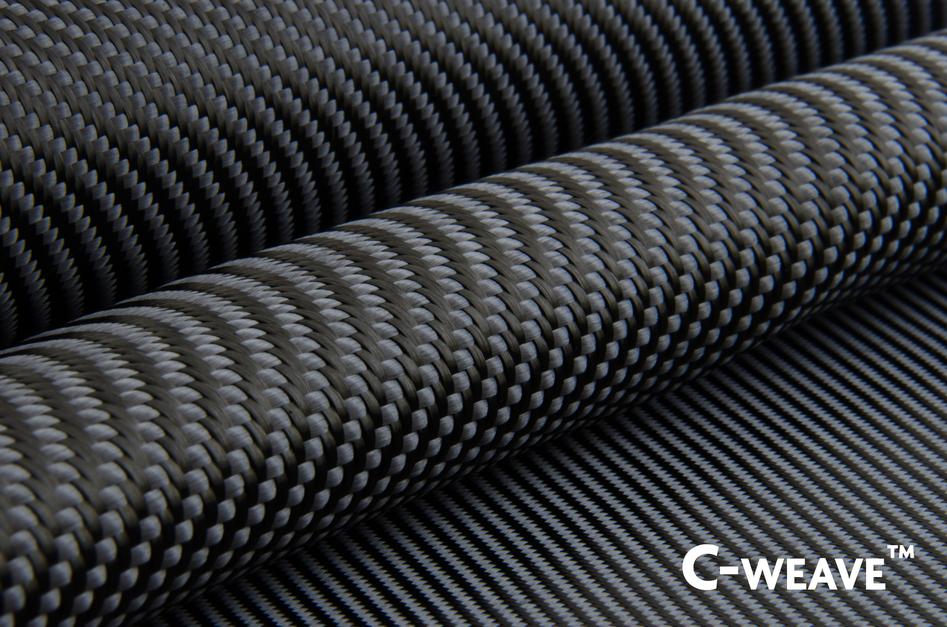

Bi-directional (0°/90°) warp and weft woven carbon fabric.
C-weave areal weights range from 160 g/m2 to 1200g/m2 in different weave patterns such as Plain, Twill and Harness Satin. Available carbon fiber tows include: 3K, 6K, 12K or 24K in HS (High Strength), IM (Intermediate Modulus) or HM (High Modulus). Benefits Outstanding visual quality for cosmetic parts. Excellent fiber alignment and flat weft yarn insertion. Highly conformable Satin weaves available. Ideal for prepreg and infusion processes.C-TAPE™

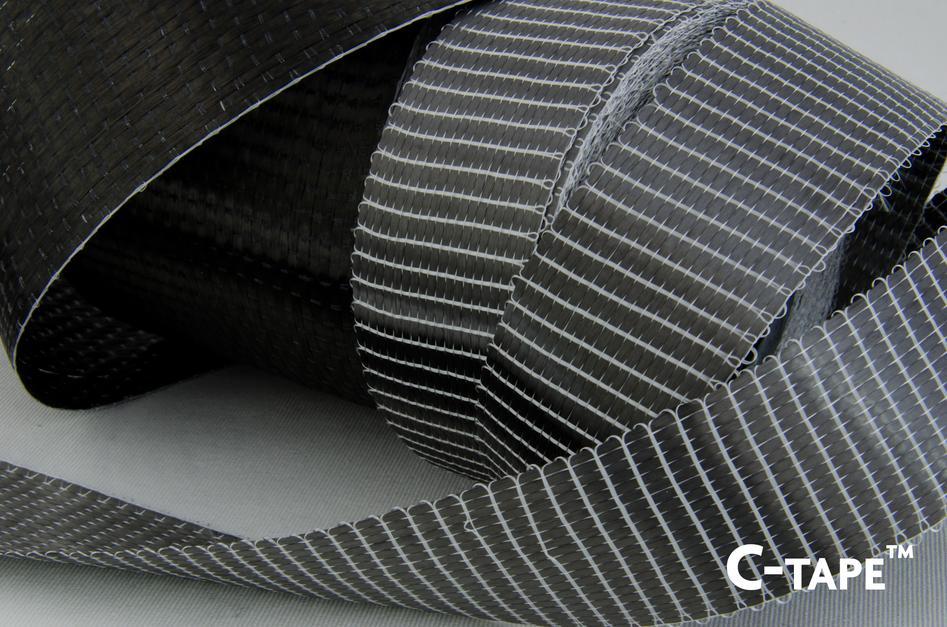

C-TAPE™ is a range of bi/unidirectional tapes made using carbon fiber. Its particular weaving technology with a continuous weft prevents frayed edges
C-TAPE™ is particularly recommended for narrow parts, which require consistent mechanical properties and tolerances. Benefits : Narrow tapes. Excellent fiber alignment. Good stability without frayed edges. Less crimped with good mechanical properties at 0°. Provides rigidity to parts. Ideal for infusion processes and adaptations.ROVICORE™

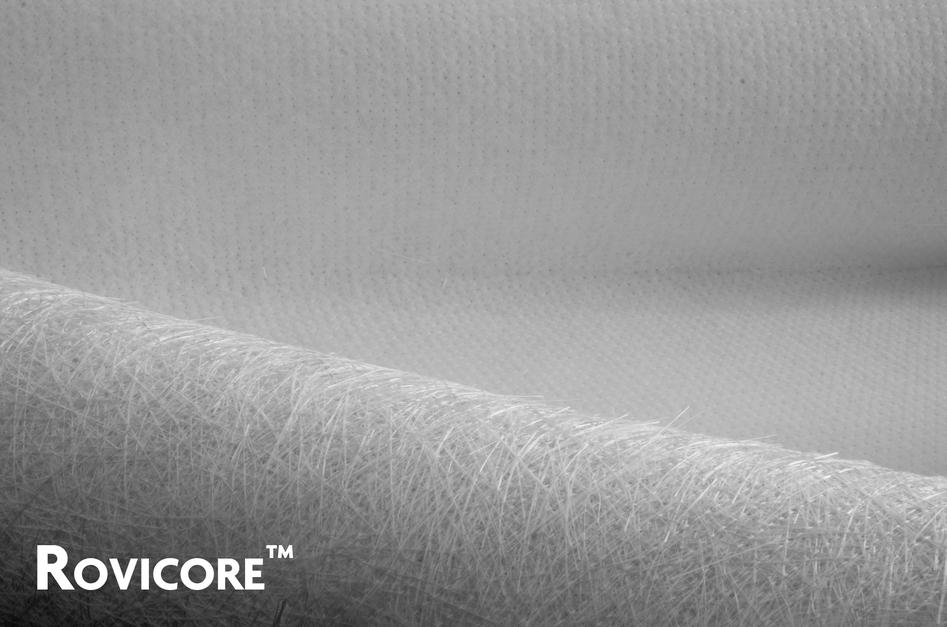

ROVICORE™ is a reinforcement made with a synthetic non-woven core and chopped glass fibers mechanically stitched together.
Rovicore can be used for all the closed mold process needs and helps improve productivity and quality. Rovicore offers many advantages : -Easy manipulation -Adaptable thickness -Core Resilience and Compressibility -Good surface aspect -High permeability of the synthetic core -Lack of chemicak binder -AdaptabilityG-PLY

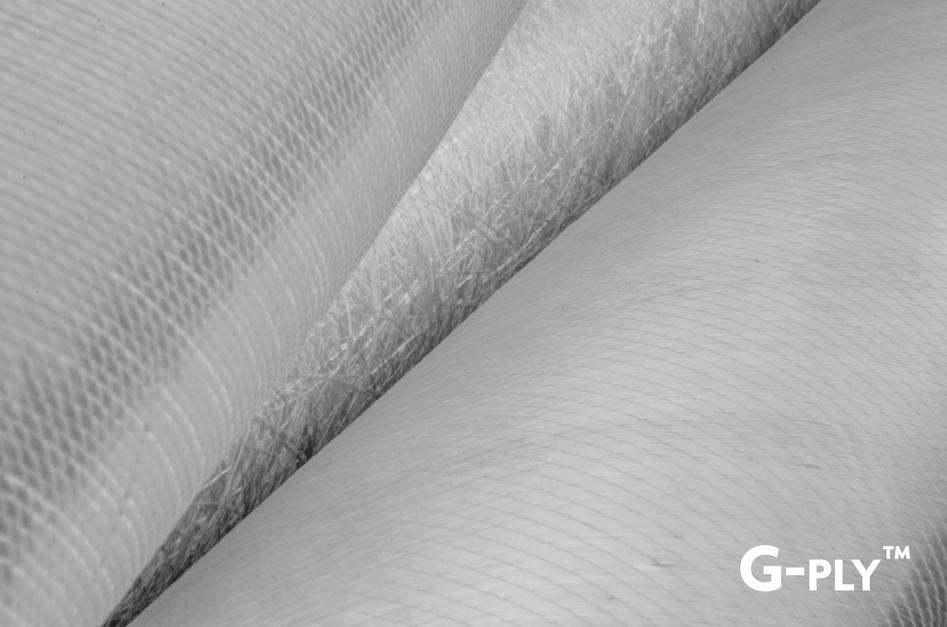

G-PLY is a multiaxial made up of undirectional layers (0°, 90°, +/-45°) that are mechanically sewn together.
This is a continuous fiber, non-crimp fabric. This construction allows increased mechanical performance compared to woven fabrics.G-TAPE

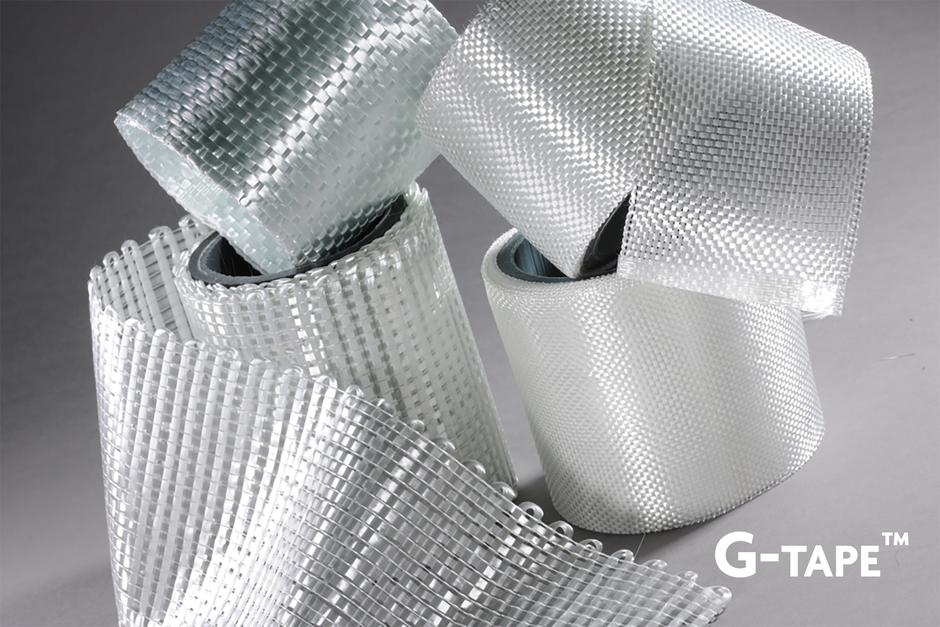

G-tape is a woven tape with selvedges.
It may be balanced or unidirectional, fixed or not, made using glass, polyester, aramid or other fibers. Advantages • Width can be adapted to your need. • Easy to manipulate, no edge fraying. • Specially adapted to UD warp. • Possibility to add fixation for a better handling and higher • mechanical resistance. • Easy to mix different fibers (carbon, glass, aramid, flax or • basalt).ADHESIVE SOLUTIONS
FX is an adhesive solution to help the lay-up of reinforcement in closed mould processes.
FX enables the positioning of CHOMARAT glass reinforcement products. FX is a key function to ease the production of large parts with complex geometries in closed mould processes. It is well suited for markets like marine and transportation. Advantages • FX is a facilitator of reinforcement positioning and ease lay-up of vertical sections. • The FX solution is available on CHOMARAT’s ranges of fabrics, multiaxials and core materials.
Downloads
Solutions for marine
Harnessing 45 years of expertise in the Marine market. Chomarat is a pioneer in developing solutions to achieve weight reduction, improved surface appearance and stronger structures.
