Products
Electric Outboard Motor
FALCON is the lightest, quietest and most efficient outboard in its class, representing a strong commitment to sustainable innovation.
Drop-in unit with Battery for Shaft, Z-Drive and Jet-Drive
Most tested electrical system built on a frame - very easy and quick assembly.
We have developed a system to meet the shipyard‘s needs for an efficient and safe way to build an electric boat with no difficulties.
EPTechnologies system is a complete product with an easy plug and play system. It's fully tested before shipping from the factory and pass all quality tests on our test bench. Our flexibility means that we adapt to meet the shipyard‘s wishes and expectations. This makes it easy for both the boat builder and the customer to get the perfect system for their needs.
Racing Sail Drive
Quiet, efficient, and environmentally friendly electric saildrive, offering smooth handling and low maintenance.
Enhanced Sailing Experience: Designed to improve performance, efficiency, and reliability.
Optimized Motor-Propeller Connection: Reduces drag and enhances thrust for smoother, quieter operation
Power and Efficiency: Delivers necessary power with zero emissions and low maintenance
Minimal Noise: Operates quietly, enhancing the sailing experience
Instant Torque: Provides smooth, responsive handling in all conditions
Versatile Handling: Ideal for both cruising and maneuvering in tight marina spaces
In-Line Hybrid System
A parallel hybrid propulsion system designed for power vessels ranging from 7m up to 50m superyachts.
The system is tailored to accommodate electric power requirements from 20kW to 600kW, complemented by an ICE motor of up to 1,700hp.
The PM motor shaft aligns directly with the output shaft of the combustion engine and the marine gear, enabling direct propulsion of the propeller shaft from the diesel engine, the e-motor or a combination in diesel-electric boost mode. Furthermore, the design can seamlessly transition to generator mode while driving with the diesel engine engaged.
Parallel Hybrid Inline Shaft
Electric motor drives the shaft, powered by batteries and/or a generator
Thermal engine, Volvo, MAN, MTU or other 150 to 1500 HP
E-motor up to 50 – 360 kW
RPM 1200 – 2200 on the engine shaft
With electric clutch and cardan shaft
Parallel Hybrid on V-Gearbox
Has an electric motor for propulsion, with a generator supplying power, allowing for efficient energy use, reduced emissions, and flexible operation.
Thermal engine, Yanmar or Volvo Penta, 45 to 250 HP
E-motor up to 150 kW
Generator up to 100 kW
Silent Night Mode set for Yachts & Super Yachts
Silent night mode for yachts enables quiet, emission-free operation by running on battery power, offering a peaceful onboard experience without engine
Variable EPT DC Genset, 40 – 3000 kW
EPT EMS/PMS control system including 15″HMI
EPT Battery 622 V, 110 kWh, factor x of according to yacht size
Optional aircon system, direct from the HV DC link

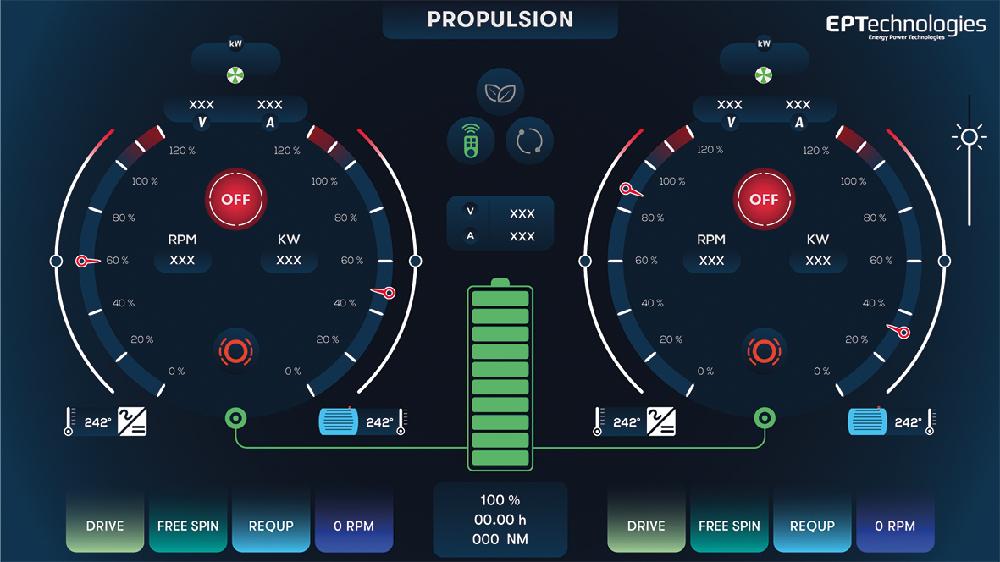

EPMS System
Combines all the information on the vessel for you to properly manage the power
EPTechnologies has developed an intelligent HMI (Human Machine Interface) where we emphasise simple design and ease of use.
Of course, there is a lot going on behind the screen that is automated and only pops up when needed.
DuCan
Advanced monitoring and support system
Optimise your fleet management with our specialised monitoring and support system specifically designed to meet the rigorous demands of the maritime industry. Gain comprehensive insights into your customer's vessels, enabling precise fault detection, system analysis and efficient
• Maximise uptime - Access complete vessel system
• Automated data logging and trend analysis
• Real-time error reporting and alarms
• Comprehensive vessel overview
BoatControl App
Whether relaxing on the sofa or sitting in the galley, your boat data is never further away than your mobile/tablet.
The BoatControl App gives you shore power control, 14 extra contacts of your choice and NMEA 2000 interface from your boat data. You can monitor your lithium batteries, both for your propulsion and consumption low voltage batteries, shore power and control your charging. Access your boat both at sea and from home. We have taken care of the difficult matters regarding the connections to make it easy for you. Open your App and you’ll be automatically connected to your boat with a secure connection
Solid State Technology Battery
Outstanding safety record, high energy density, and longer lifespan compared to other batteries at no extra cost.
Solid State Tech Batteries can withstand overcharging, extreme heat, and punctures without harm. With a hardware override switch, electronic control systems can be bypassed, ensuring reliable power access in any situation.
Additionally, their extended cycle life of over 10,000 cycles makes them more environmentally friendly and cost-effective, offering significant ecological and economic advantages.

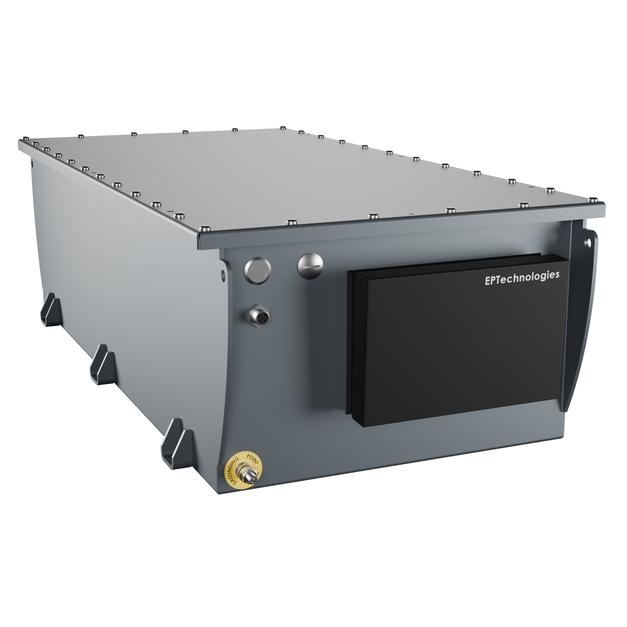

Battery
HV / High Energy Power Packs
All New Li-NMC (Nickel Manganese Cobalt) cells provide more power, lighter weight, smaller size and 25% more range than last year’s LiFePo4 chemistry. These cells have been updated with even lower impedance. Lightweight High Quality 3.7V (nominal) Li-NMC cell. Pre-charge circuits is included in each battery string, isolation monitoring and SoC (state-of-charge) & SoH (state-of-health) calculations as well.
The batteries have a 8 to 12 year life expectancy depending on how well you treat them.
Smaller sized
LV Lithium Batteries Solid State Technology
LV SOLID STATE BATTERY– “FOR HOUSE” -24V / LV SOLID STATE BATTERY–“FOR 48 V PROPULSION”
• Battery chemistry: LFP
• Nominal voltage (V): 25,6 V / 51,2 V
• Nominal capacity @ 25 oC: 280 Ah
• Nominal energy @ 25 oC: 7.16 kWh / 14.33 kWh
• Body material: Aluminum
• Top lock lid material: Stainless Steel
• Protection class: IP65
• Cycle life @ 80% DoD: 10000
• Weight: 54 Kg / 108 Kg
• Scalable: Parallel only

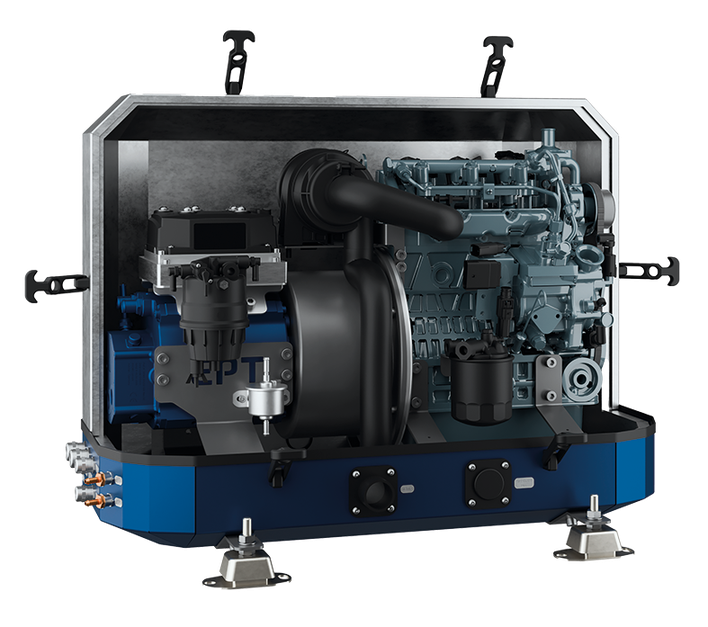

Mini DC Generator
Power 12 – 17 kW Voltage: 48 – 800 VDC Ultra Compact Light Weight: under 110 kg Variable Speed Sound enclosure: with or without Fire extinguisher
High-Power Generator: Delivers 14kW at 96 volts, offering impressive power in a compact footprint.
Compact Design: The small footprint makes it suitable for vessels where space is typically limited, comparable to the size of a 4kW generator.
Reliable Kubota Engine: Built with one of the most reliable engines in the marine market, directly affiliated.
Efficient Cooling System.
Versatile Installation: A standalone unit compatible with various boats, including larger 40ft vessels.

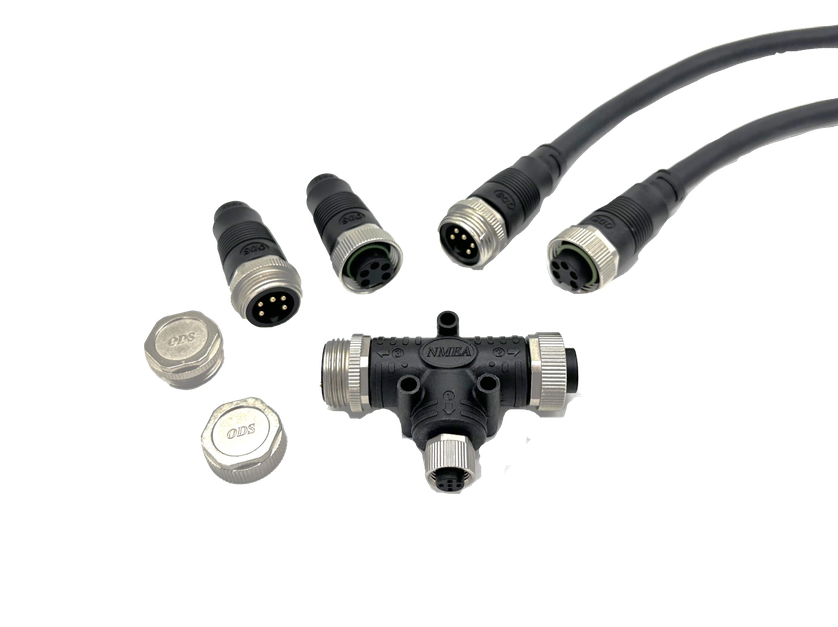

CAN Bus
NMEA2000
Cable length limit – 25 m
Waterproof IP 67
Temp range -20°C to +80°C
Current Rate: 8A
Switches
Stainless steel
Waterproof IP 67
Max Voltage: 250 VAC 50 VDC
Led Voltage: 9 – 36 VDC
Max Current: 5A (20A on request)
Diameter: 19 mm / 22 mm
Latching / Momentary
Single colour: Red /Green / Blue / White / Yellow
Double colour: Red/Green, Red/Blue
