STANDARD VERTICAL HATCH
DOOR: 5083 aluminium (20mm sheet)
FRAME: 5083 aluminium (35 mm sheet)
HINGES: built-in, in mirror polished stainless steel, 180° opening.
FLUSH HANDLE in mirror polished stainless steel AISI 316L.
Custom hardware entirely conceived and
produced in-house.
Read more
VERTICAL HATCH WITH VENTILATION GRID
DOOR: 5083 aluminium (20 mm sheet).
FRAME: 5083 aluminium (35 mm sheet).
HINGES: built-in, in mirror polished stainless steel AISI 316 L, 180° opening.
FLUSH HANDLE in mirror polished stainless steel AISI 316 L.
Custom hardware entirely conceived and
produced in-house
Read more
ORIZONTAL HATCH
DOOR: 5083 aluminium (15 mm sheet).
FRAME: 5083 aluminium (35 mm sheet).
HINGES: built-in arched, in mirror polished stainless steel AISI 316L, 93° opening.
FLUSH HANDLE: in mirror polished stainless steel AISI 316L.
STAINLESS STEEL GAS SPRING for a confortable lift.
Custom hardware entirely conceived and
produced in-house.
Read more
ADJUSTABLE HATCH
DOOR: 5083 aluminium (15 mm sheet).
WELD-ON FRAME: 5083 aluminium (6 / 8 mm sheet).
ADJUSTABLE FRAME: 5083 aluminium (20 mm sheet).
CONCEALED HINGES: in mirror polished stainless steel AISI 316L, 180° opening.
FLUSH HANDLE: in mirror polished stainless steel AISI 316L.
Custom hardware entirely conceived and
produced in-house
Read more
FLUSH HATCH
DOOR: 5083 aluminium (20 mm sheet).
FRAME: in mirror polished stainless steel AISI 316L
HINGES: arched, in mirror polished stainless steel AISI 316L, 95° opening.
LOCKING SYSTEM by conical pin on 4 side
operated by double bar handle (inside) and hand
wheel (outside).
STAINLESS STEEL GAS SPRING AISI 316 for a
confortable lift.
Custom hardware entirely conceived and
produced in-house.
RINA CERTIFICATION:
C.E. / TYPE APPROVAL
(RANGE FROM 450 MM UP TO 700 MM)
Read more
HATCH WITH COAMING
DOOR: 5083 aluminium (20 mm sheet).
FRAME: in mirror polished steel AISI 316L (5 mm sheet).
HINGES: arched, in mirror polished steel AISI 316L, 95° opening.
LOCKING SYSTEM by conical pin on 4 side
operated by double bar handle (inside) and hand
wheel (outside).
STAINLESS STEEL GAS SPRING AISI 316 for a
confortable lift.
Custom hardware entirely conceived and
produced in-house
Read more
ENGINE ROOM DOOR
DOOR: 5083 Aluminium.
FRAME: 5083 Aluminium or Aisi 316L, bolt-on or weld-on.
EXTERNALE HINGES: in mirror polished stainless steel AISI 316L.
Double bar HANDLE in mirror polished stainless steel
AISI 316L.
LOCKING SYSTEM by opposing rods on 4 side.
SOUNDPROOF
Custom hardware entirely conceived and
produced in-house
CUSTOM:
INSPECTION PORT HOLE
COLOR FINISHING
Read more
SIDE DOOR
DOOR: 5083 Aluminium.
FRAME: 5083 Aluminium or Aisi 316L, bolt-on.
RECESSED HINGES in mirror polished steel AISI
316L, opening 180°.
HANDLE: in mirror polished stainless steel AISI 316L.
LOCKING SYSTEM by opposing rods on 4 side and
key-locking system.
Custom hardware entirely conceived and
produced in-house
CUSTOM: GLASS WINDOW
Read more
PANTOGRAPH DOOR
DOOR: 5083 Aluminium
FRAME: AISI 316L stainless steel, bolt-on. Customizable finish in mirror polished or painted stainless steel
COAMIMG: weld-on (10 mm sheet). Customizable with different material options.
HANDLE: Double bar in mirror polished stainless steel AISI 316L.
LOCKING SYSTEM: opposing rods on 4 side and key-locking system
Custom hardware entirely conceived and
produced in-house
CUSTOM:
Dimension and color finishing
Glass window
Quick-action closure
Read more
HINGED DOOR
DOOR: 5083 Aluminium
FRAME: AISI 316L stainless steel, bolt-on. Customizable finish in mirror polished or painted stainless steel
COAMIMG: weld-on (10 mm sheet). Customizable with different material options.
HANDLE: Double bar in mirror polished stainless steel AISI 316L.
LOCKING SYSTEM: opposing rods on 4 side and key-locking system
Custom hardware entirely conceived and
produced in-house
WATERTIGHT / WEATHERTIGHT
Read more

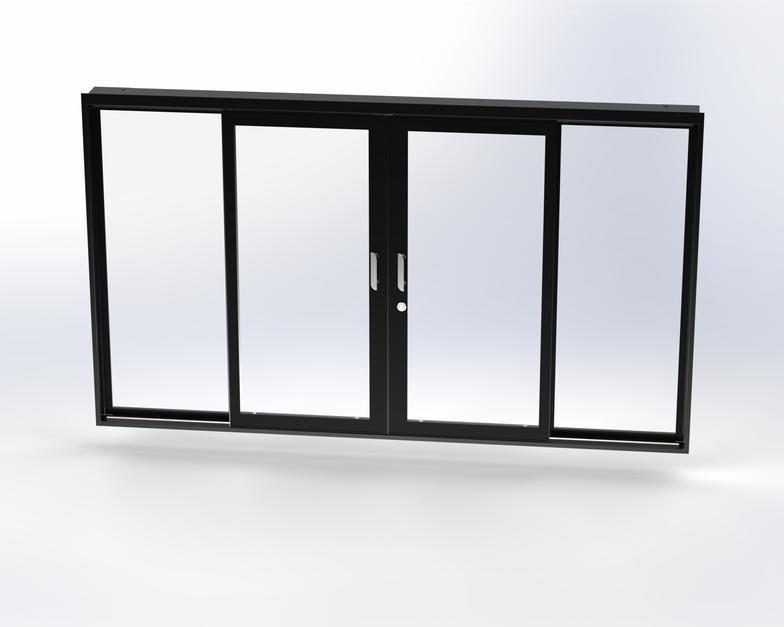

AFT SLIDING DOOR
DOUBLE-LEAF SLIDING DOOR.
FRAME: AISI 316L stainless steel. Customizable finish in mirror polished or painted stainless steel.
LEAVES: polished stainless steel AISI 316
MONOLITHIC TEMPERED GLASS.
ELECTRIC ACTUATION for opening and closing
LOCKING ACCESSORIES:
HANDLE: Double bar in mirror polished stainless steel AISI 316L.
KEY-OPERATED LOCK
CUSTOM:
Dimension and color finishing
Laminated glass
Read more
