Audio over IP
System Design - Hardware Supply - Services
NEXGENTEC AUDIO creates interfaces, suitable to allow the high-end marine and residential markets, to fully work with Dante™ audio over IP solutions. We provide our partners with an 'a la carte' supply of hardware, design services, technical training, calibration and support for a complete bespoke audio over IP system, including its interface with the control system.

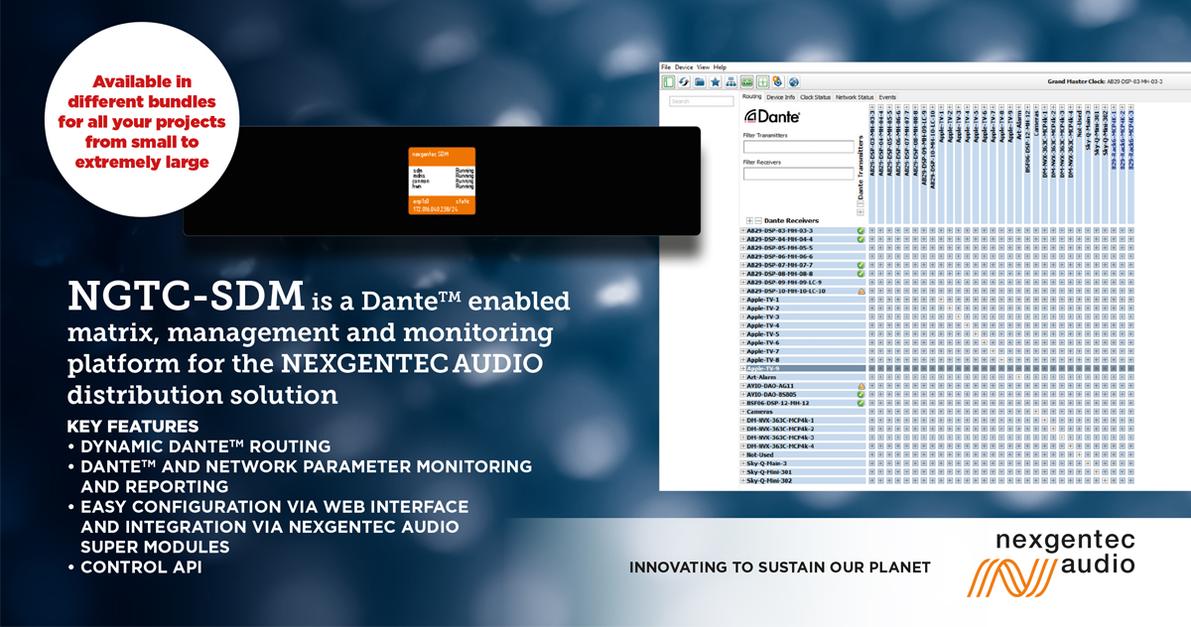

NGTC-SDM
nexgentec software defined matrix, Dante
The NGTC-SDM is a Dante® enabled matrix, management and monitoring platform for the nexgentec audio distribution solution.
Key Features
• dynamic Dante® routing
• Dante® and network parameter monitoring and reporting
• easy configuration via web interface and integration via nexgentec super modules
• control API
• available as 32, 64 or unlimited sources configuration

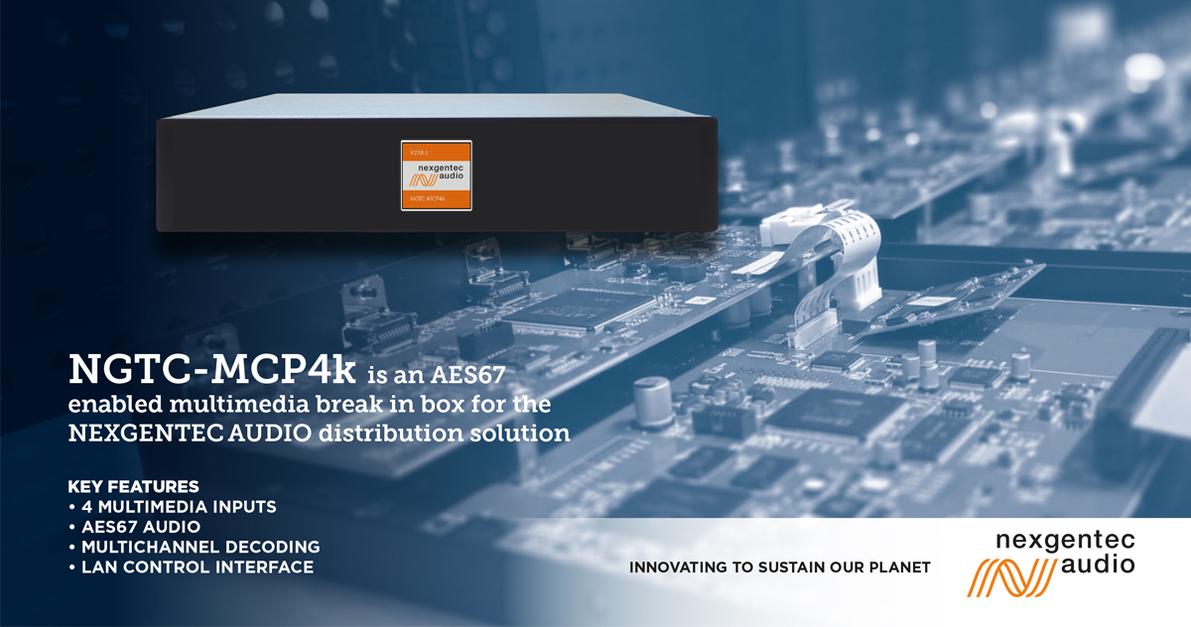

NGTC-MCP4k
nexgentec audio 7.1 multichannel processor, Dante®
The NGTC-MCP4k is an AES67 enabled multimedia break in box for the nexgentec audio distribution solution.
Key Features
• 4 multimedia inputs
• AES67
• multichannel decoding
• LAN control interface
• Current Version: NGTC-MCP4KR2

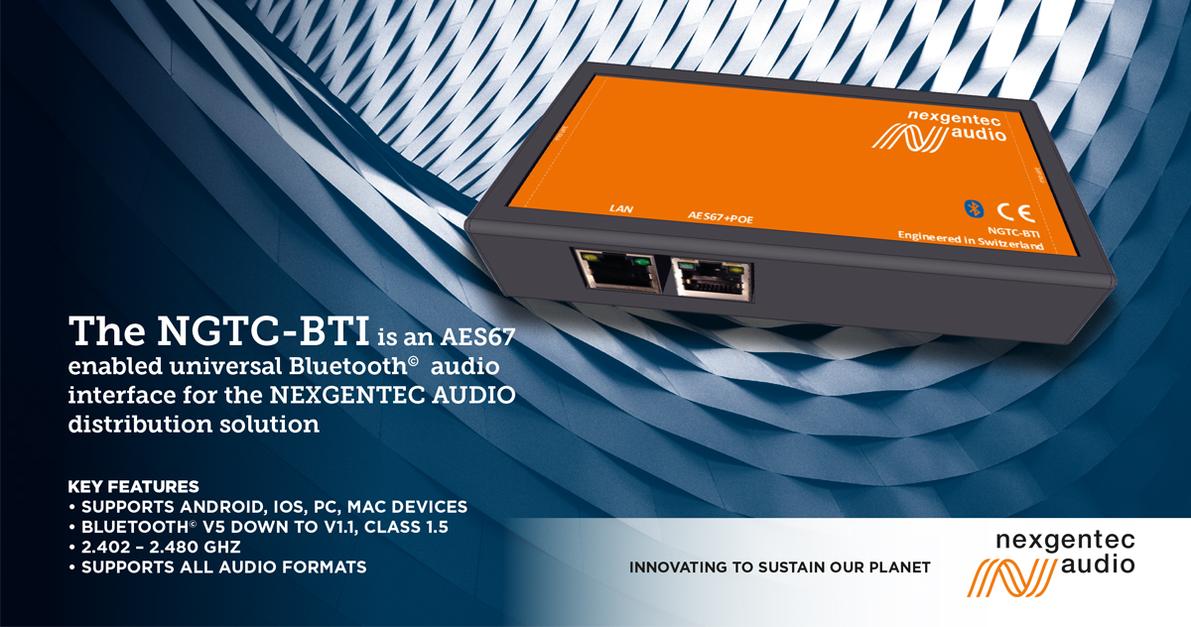

NGTC-BTI
nexgentec audio Bluetooth© interface, AES67
The NGTC-BTI is a universal Bluetooth© enabled audio interface for the nexgentec audio distribution solution.
Key Features
• supports android, iOS, PC, MAC devices
• Bluetooth© V5 down to V1.1, class 1.5
• 2.402 – 2.480 GHz
• supports A2DP and AVRCP only
• LAN API interface
• management API
• LAN AES67 audio port
• PoE powered
• Current Version: NGTC-BTIR2

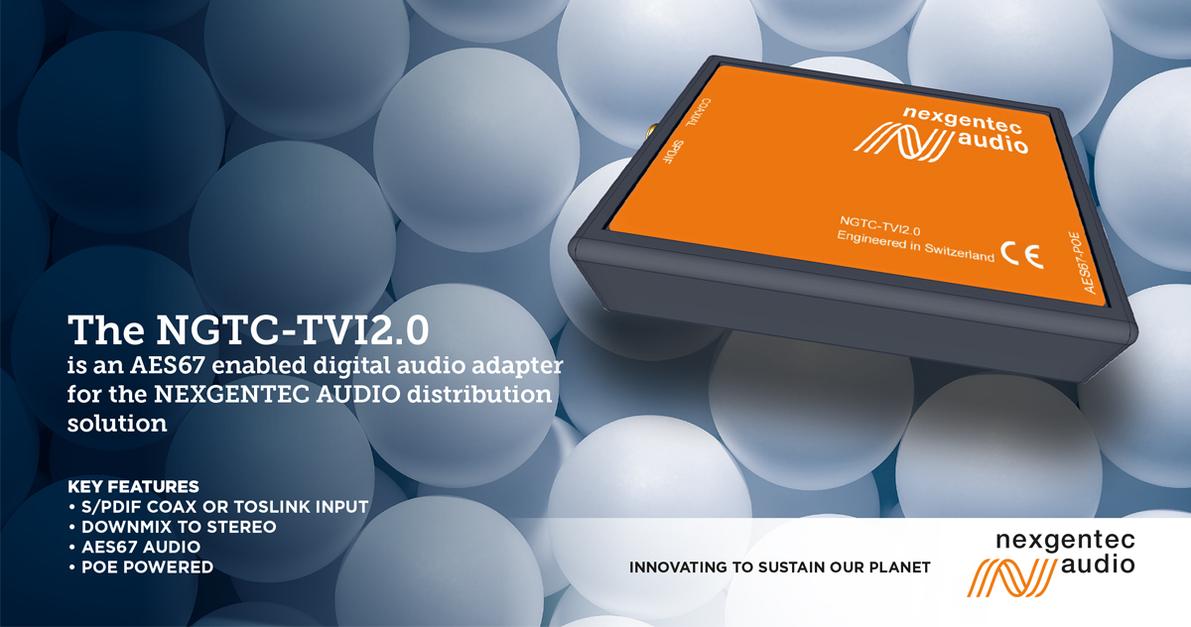

NGTC-TVI2.0
nexgentec audio 2.0 digital audio interface, AES67
The NGTC-TVI2.0 is a multiformat digital audio converter that converts coaxial or TOSLINK signals to AES67.
Key Features
• converts coaxial or TOSLINK digital audio signals to 2 channel audio on AES67
• supports sampling rate at 32, 44.1, 48, 96 KHz, 24-bit, all bitstream formats
• PoE powered
• Current Version: NGTC-TVI2.0R2

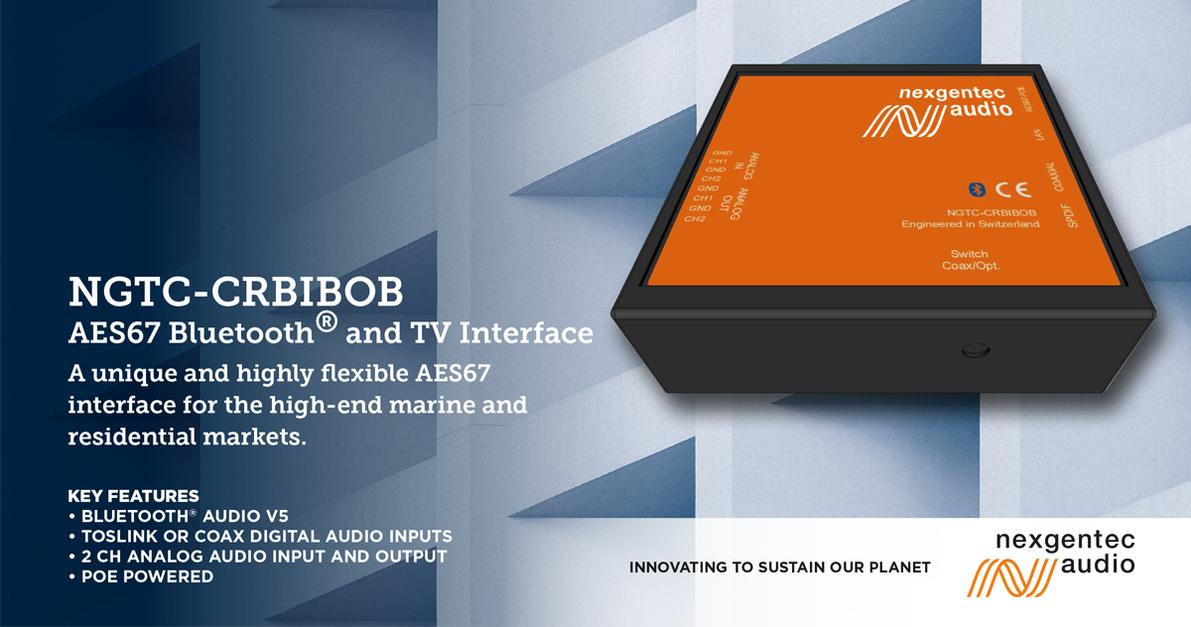

NGTC-CRBIBOB
nexgentec digital audio interface with Bluetooth© and analog audio In & Out, AES67
The NGTC-CRBIBOB is an universal Bluetooth®, TV Sound, analog audio in AES67 enabled audio interface for the Nexgentec audio distribution solution.
Key Features
• Bluetooth® audio V5
• Bluetooth® sink or source mode
• Similar feature set as the NGTC-BTI
• Toslink or coax digital audio inputs
• Supports all audio formats
• Similar feature set as the NGTC-TVI2.0
• 2ch analog audio input and output
• Management API, LAN API interface
• PoE powered
• Current Version: NGTC-CRBIBOBR2

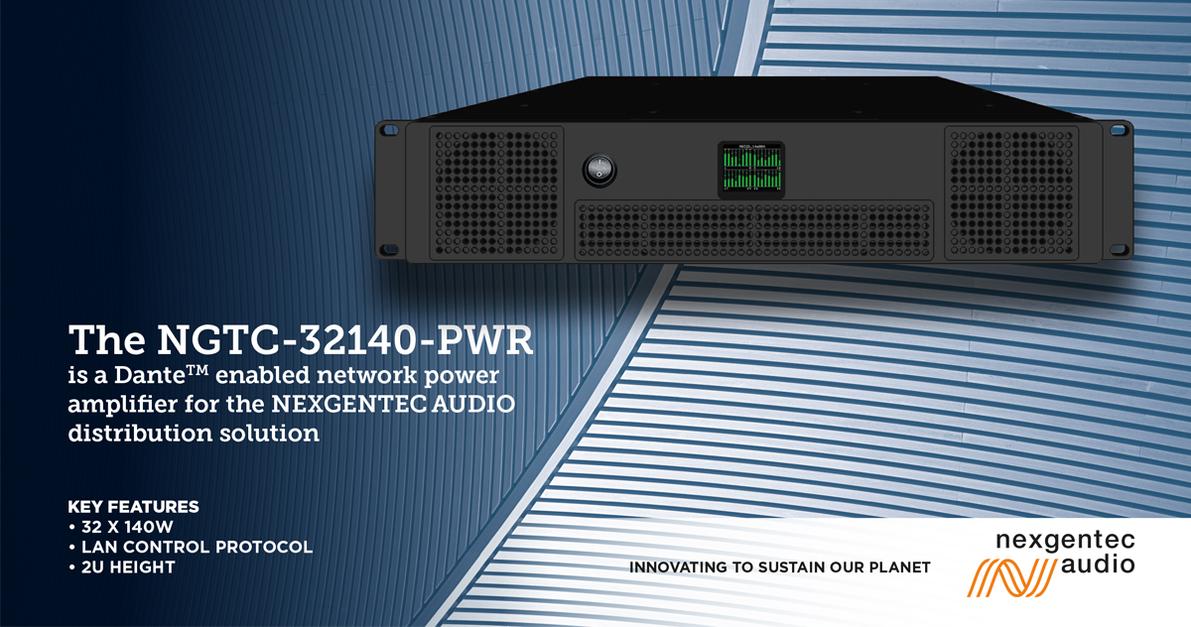

NGTC-32140PWR
nexgentec digital power amp, Dante®, 32 x 140 Watt
The NGTC-32140PWR is a Dante® enabled network power amplifier for the nexgentec audio distribution solution.
Key Features
• 32 x 140 Watt @ 8 Ohm / 280 Watt @ 4 Ohm
• LAN control protocol
• only 2RU high

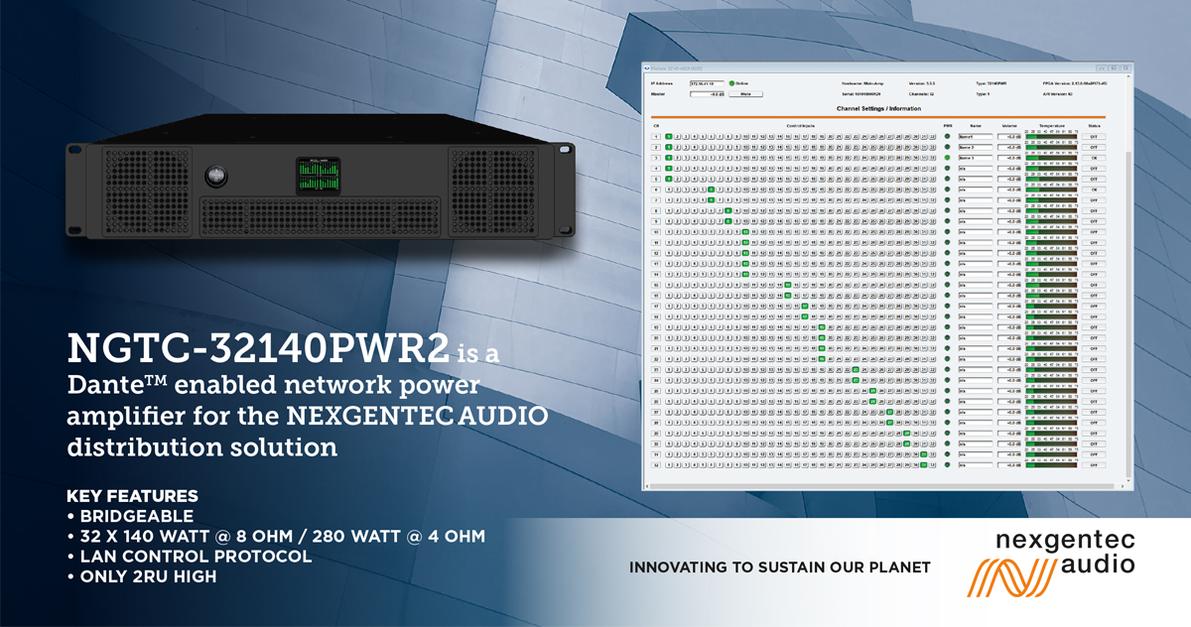

NGTC-32140PWR2
nexgentec digital bridgeable power amp, Dante®, 32 x 140 Watt
The NGTC-32140PWR2 is a Dante® enabled bridgeable network power amplifier for the nexgentec audio distribution solution.
Key Features
• 32 x 140 Watt @ 8 Ohm / 280 Watt @ 4 Ohm / 500 Watt @ 8 Ohm bridged
• LAN control protocol
• only 2RU high
• 2 kW wide range power supply
• 44.1 kHz / 48 kHz
• Web UI for monitoring and configuration
• SNMP
NGT-2140PWR
nexgentec digital bridgeable power amp, Dante®, 2 x 140 Watt
The NGT-2140PWR is a Dante® enabled bridgeable network power amplifier for the nexgentec audio distribution solution.
Key Features
• 2 x 140 Watt @ 4 Ohm – 1 x 200 Watt @ 4 Ohm bridged
• LAN control protocol
• only 1RU high
• Dante® audio interface
• Stereo digital power amplifier
• Manageable integrated 2 port switch
• nexgentec ngtOS, operating system for control api, configuration and monitoring
• Current Version: NGT-2140PWRR3

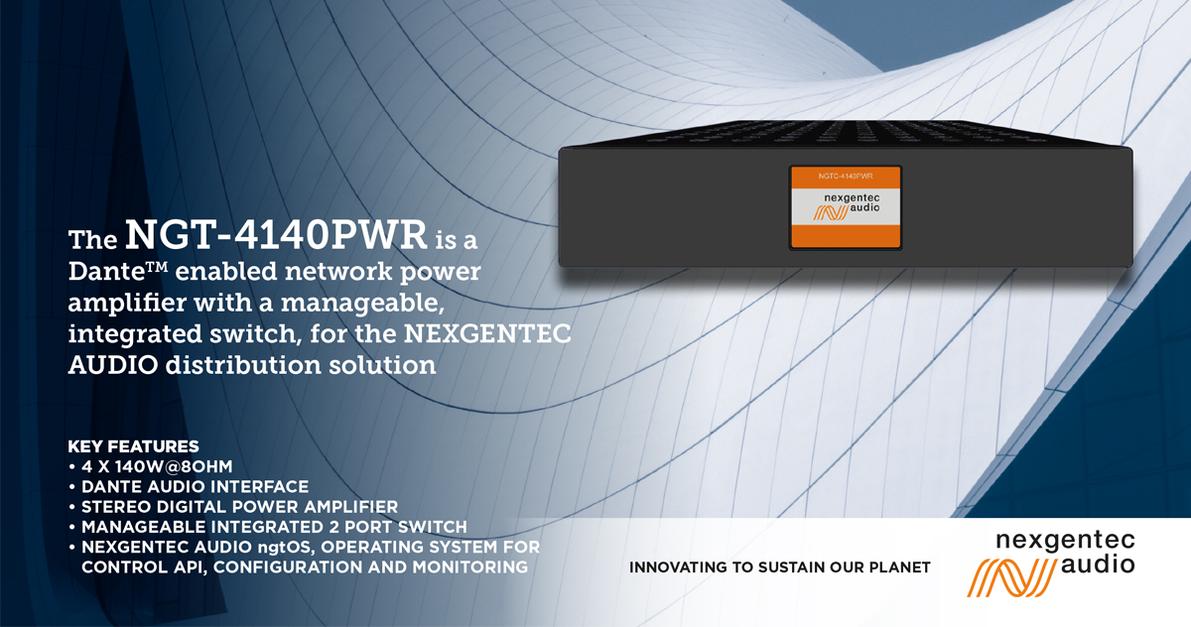

NGT-4140PWR
nexgentec digital bridgeable power amp, Dante®, 4 x 140 Watt
The NGT-4140PWR is a Dante® enabled bridgeable network power amplifier for the nexgentec audio distribution solution.
Key Features
• 4 x 140 Watt @ 4 Ohm – 2 x 200 Watt @ 4 Ohm bridged
• LAN control protocol
• Dante® audio interface
• Stereo digital power amplifier
• Manageable integrated 2 port switch
• nexgentec ngtOS, operating for control api, configuration and monitoring
• Current Version: NGT-4140PWRR3

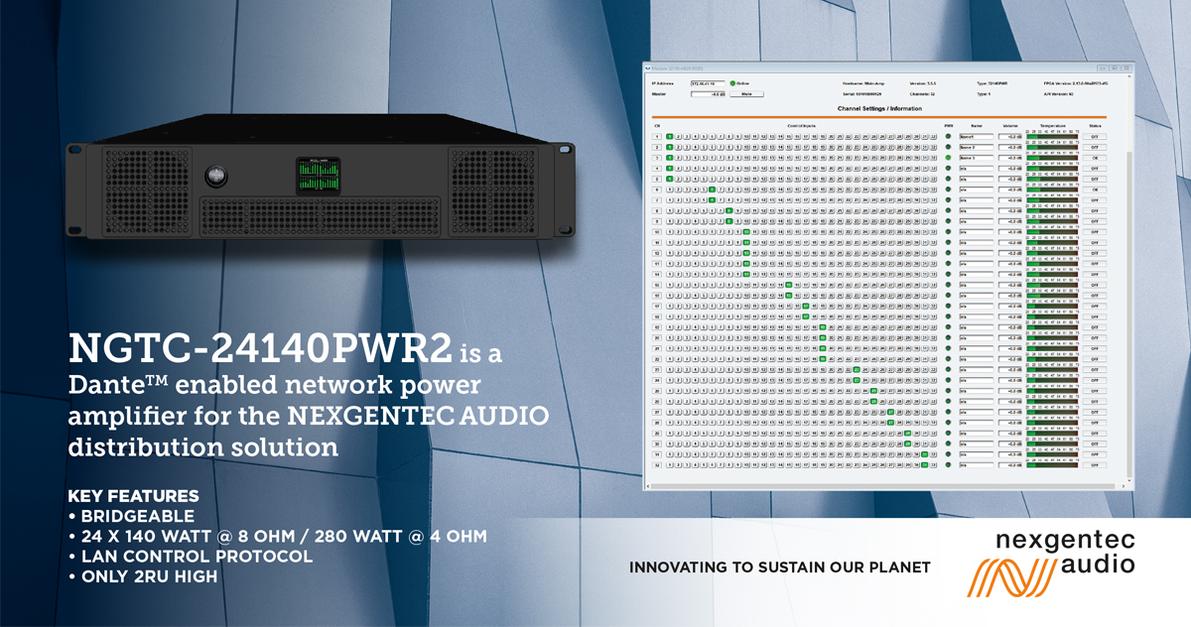

NGTC-24140PWR2
nexgentec digital bridgeable power amp, Dante®, 24 x 140 Watt
The NGTC-24140PWR2 is a Dante® enabled bridgeable network power amplifier for the nexgentec audio distribution solution.
Key Features
• 24 x 140 Watt @ 8 Ohm / 280 Watt @ 4 Ohm / 500 Watt @ 8 Ohm bridged
• LAN control protocol
• only 2RU high
• 2 kW wide range power supply
• 44.1 kHz / 48 kHz
• Web UI for monitoring and configuration
• SNMP
NGTC-DSP's
nexgentec DSP mainframe, Dante®, x analog in, x analog out
The NGTC-DSP's are Dante® enabled digital signal processors for the nexgentec audio distribution solution.
Key Features
• configurable signal processing
• rich palette of processing and logic objects, nexgentec super modules
