Transfluid - Bellmarine
Certified Marine Hybrid and Electric Solutions
Transfluid and Bellmarine, the leading European manufacturer of electric and hybrid propulsion systems with industrialized and series production.
Electric systems from 2 up to 260kW and hybrid solutions up to 2000 kW (2700 diesel HP), plug and play instalations.
A new era of boating driven by quality, durability and innovation.
STAND NUMBER:
02.421
EVENT:
Metstrade 2025
ADDRESS:
Via Guido Rossa 4 21013 Gallarate Varese Italy
WEBSITE:
Products
View all products
HTM700
Hybrid Marine System
The Transfluid HTM/== hybrid marine system is made up of the following Transfluid products: SAE multi disc clutch system, to connect and disconnect the internal combustion engine solenoid clutch control valve power shif with SAE B power take-off permanent magnet electric machine >(max 35kW or 47 hp) with motor or generator function marine powershift gear box with RBD flexible coupling electric selector with in-built soft shift.Hybrid Modul

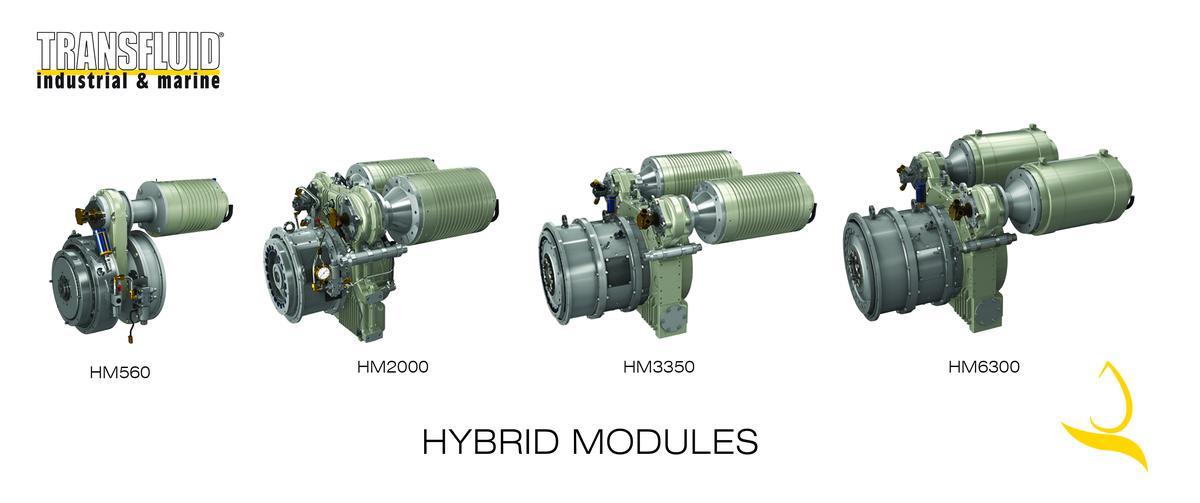

Hybrid Transmission HM
Transfluid Hybrid Moduls can be installed on any naval combustion engine on the market, both on new boats and on pre existing ones. Input Diesel power con range between 134 and 1650 hp, while the nominal electric power ranges between 8 and 260 kW. The Hybrid Moduls are suitable for any available transmission.DriveMaster

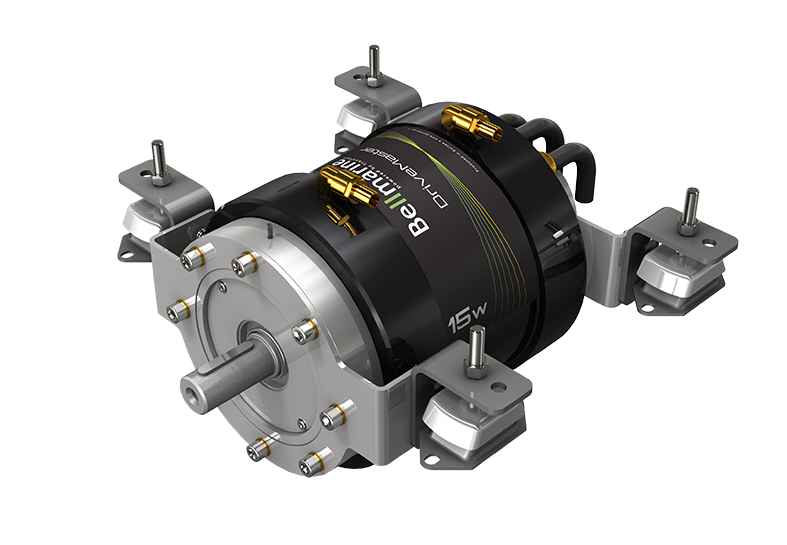

Air and Liquid Cooled Electric Propulsion System
Permanent Magnet motors for installation on shaft lines. Maximum efficiency, silent and compact solution. Available from 2 to 55 kW. Regeneration via dragged propeller possible. The DriveMaster is complete "plug&play" powerfull electric propulsion system.SailMaster
Electric SailDrive Propulsion
The SailMaster is a permanent motor with Sail Drive transmission, ideal for sail boats with regeneration via drassed propeller. It's available with air cooling in the power range from 5 up to 20 kW (intermitent) and with liquid cooling from 7 up to 45 kW (intermitent). The SailMaster has be designed to be as silent as possible.TorqueMaster

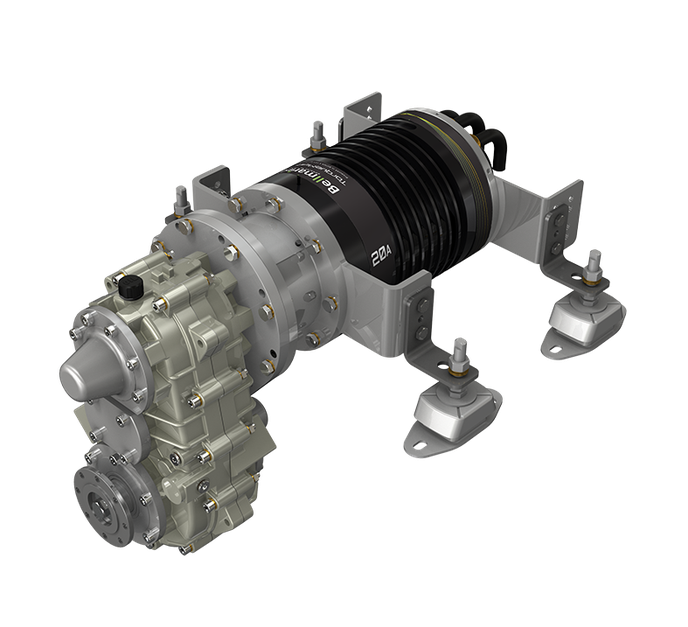

High Torque Geared propeller shaft system
The TorqueMaster is a affordable and simple to install solent electric system with several rations mechanical reduction. A compact solution desined to couple to any propeller. It' s available up to 100 kW for any motor boats and sail boats.OutboardMaster

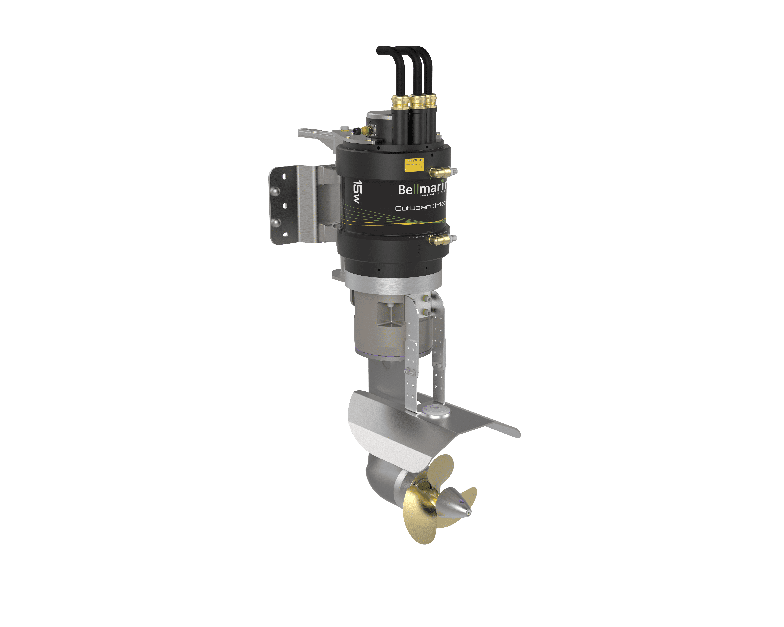

Electric Outboard propulsion
Specially developed electric Outboard for applications where maneuvrability and robustness is crucial. In case of the reduction of 2:1 it is possible tp mount big size propellers to reach more trust and higher effeciency.SquidMaster
Permanent magnet motor with SailMaster transmission and integrated stern jet thruster
ELCO
Electric Outboards
Elco‘s outboard motors might look and feel like standard outboard motors, but beneath thei rugged abd durable exterior lies the proven design and leading-edge electric propulsion technology that has made ouroutboards the leader in power and performance. Elco outboard motors available in a wide range of horsepower with remote or tiller control and long or short shaft lengths to fit boats of all shapes and sizes.Shaftmaster

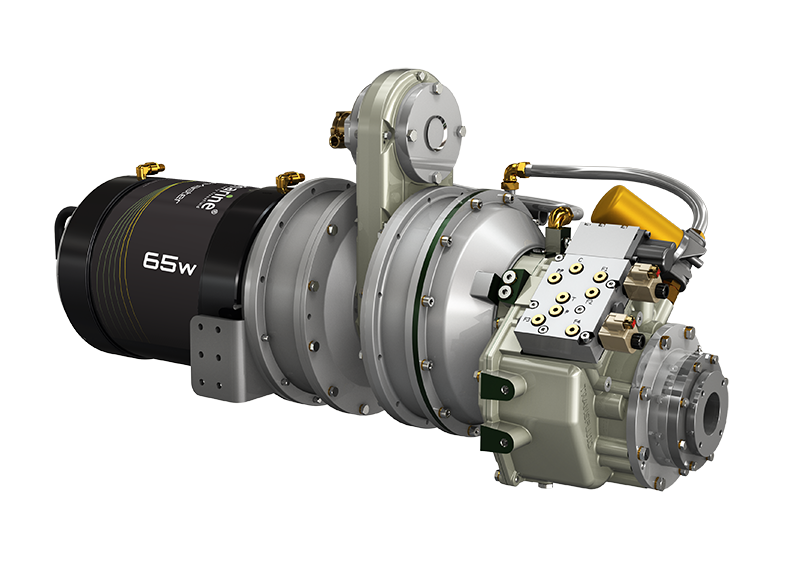

Permanent magnet motor with powershift marine gear with various gears ratios; liquid-cooled.
The innovative concept of the marine EPS (Electric Propulsion System) marine gear box REVERMATIC 11-700 RBD coupled to the electric motor allows you to maximize the maneuverability of the boat and to enhance the performance of the electric motor because, thanks to the reduction ratio of the marine gear , it is possible to size the propeller of the boat to the maximum power delivered by the electric motor, full exploiting the the motor features at 3000 rpm / min.
