Manufacturers of advanced marine grade Digital Displays across a range of sizes from 2” – 12”. Fully IP66 / 67 suited to all weather conditions whilst providing superior visibility in direct sunlight. Available with out-of-the-box Engine Monitoring software with NMEA2000 gateway functionality or fully bespoke tailored solutions.
Our product portfolio also includes Analogue & Serial Gauges, Sensors & Digital Switching.

NEW for 2025! is the C4.3 4.3" ISP TFT CANbus Display with backlit buttons.

Veethree Technologies

New for 2025 - C4.3 IPS TFT CANbus Display

Launching the all new C4.3 continues the line of new rugged display solutions from Veethree Technologies. The 4.3' high bright colour display is a compact unit with 5 x tactile feedback buttons. On-board light sensor automatically adjusts brightness according to surroundings.

Suitable for a wide range of applications with communication options of 2 x CAN (1 x CAN FD capable and 1 x CAN isolated), RS485 and Ethernet. On-board I/O includes analogue / digital inputs and digital outputs.

With ARMcortex-M Microcontroller the C4.3 can achieve fast boot times and can be used in low power applications. The fully bonded LCD provides outstanding viewability in all conditions including direct sunlight. The ruggedized unit is sealed to meet IP66/67 standards – suited to the harshest of environments.

VR2CAN

VR2CAN – DUAL SENDER INTERFACE FOR VOLTAGE/RESISTANCE SENDERS.

The dual sender interface features two isolated analogue inputs, capable of converting resistance and voltage signals from slow moving senders such as fluid level or resistive position senders to either J1939 or NMEA2000™ CAN bus data representing a specific real-world value as defined by the J1939 or NMEA2000™ standard.

The product's isolated analogue inputs are configurable to be a resistance input or voltage input, and are protected from voltage application up to +/-50V, even when the device is not powered. The device comes with multiple predefined sender lookup tables allowing for simple user defined set-up. Custom configurable tables for pressure, temperature and trim senders with specific functions are also supported.

When used with fuel senders in vessels or vehicles equipped with irregularly shaped tanks, the VR2CAN offers advanced calibration capabilities to ensure accurate fuel level representation. Unlike standard linear interpretations, which can misrepresent the actual volume of fuel left in the tanks, the VR2CAN allows the operator to define custom calibration tables that map sender readings to provide a more accurate representation of the fuel levels. This feature enables a more precise and reliable display of the tanks content, improves operational awareness and in turn, reduces the risk of unexpected fuel shortages. It is also especially valuable in marine and specialty vehicle applications where tank position and geometry are often very different than standard regular shaped fuel tanks.

The device has a single externally visible LED, that provides the user with an instant visual reference to the current status of the device. The device can be configured using our PC desktop application, or via CAN bus. Firmware for the device can also be updated via the PC desktop application.

The M2.3 display supports J1939 and is Tier 4 compliant. Our displays have established a new standard for intelligent, multi-function displays and are the perfect platform to empower your electronic systems with flexibility and control.

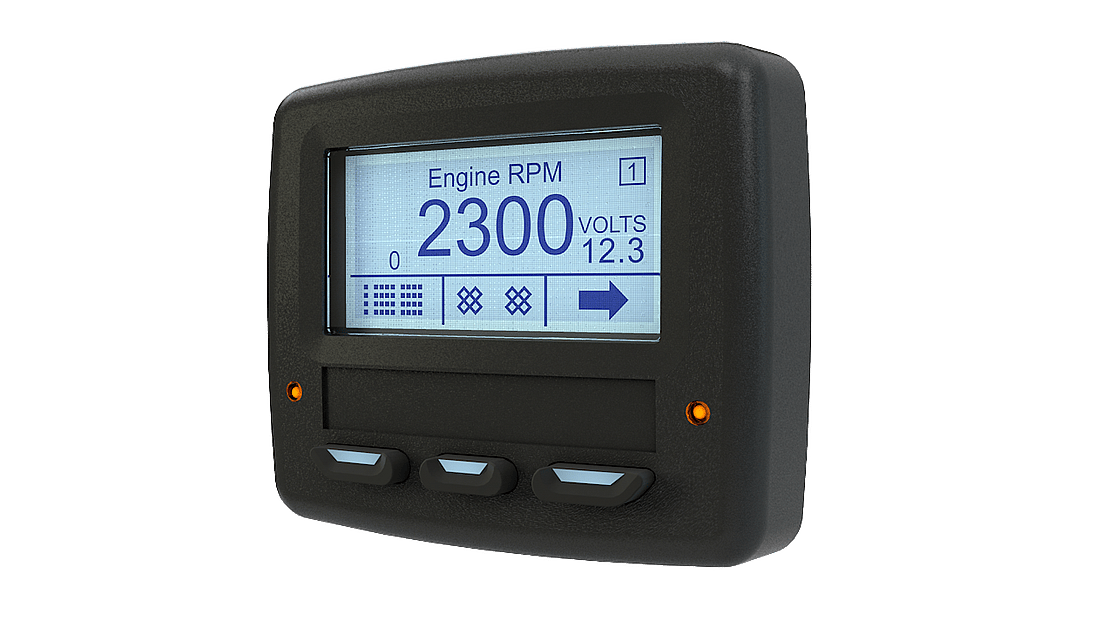

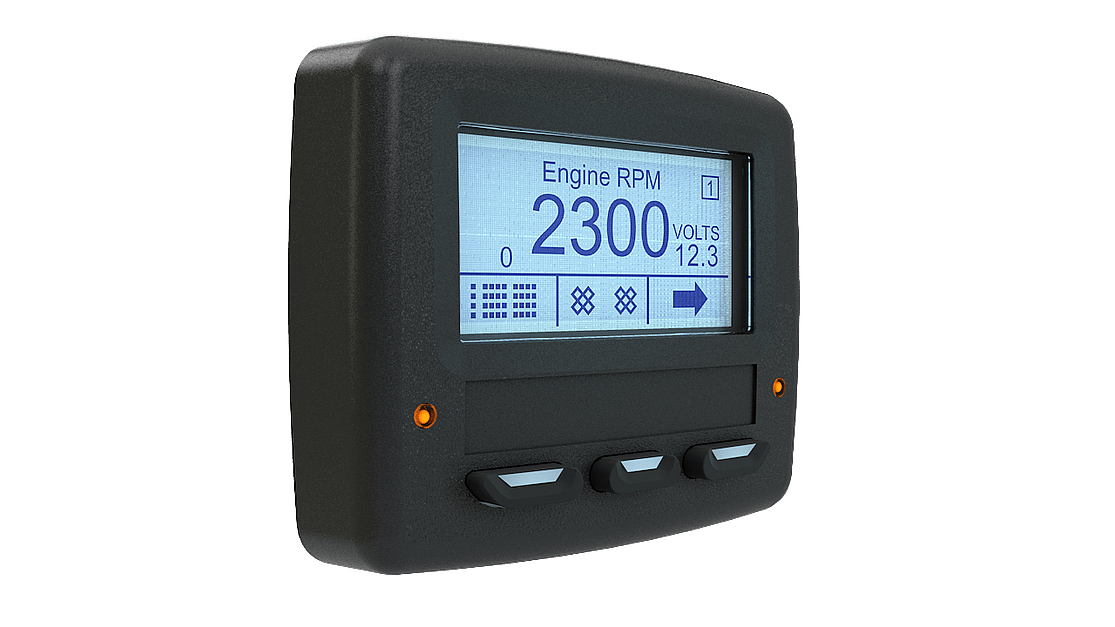

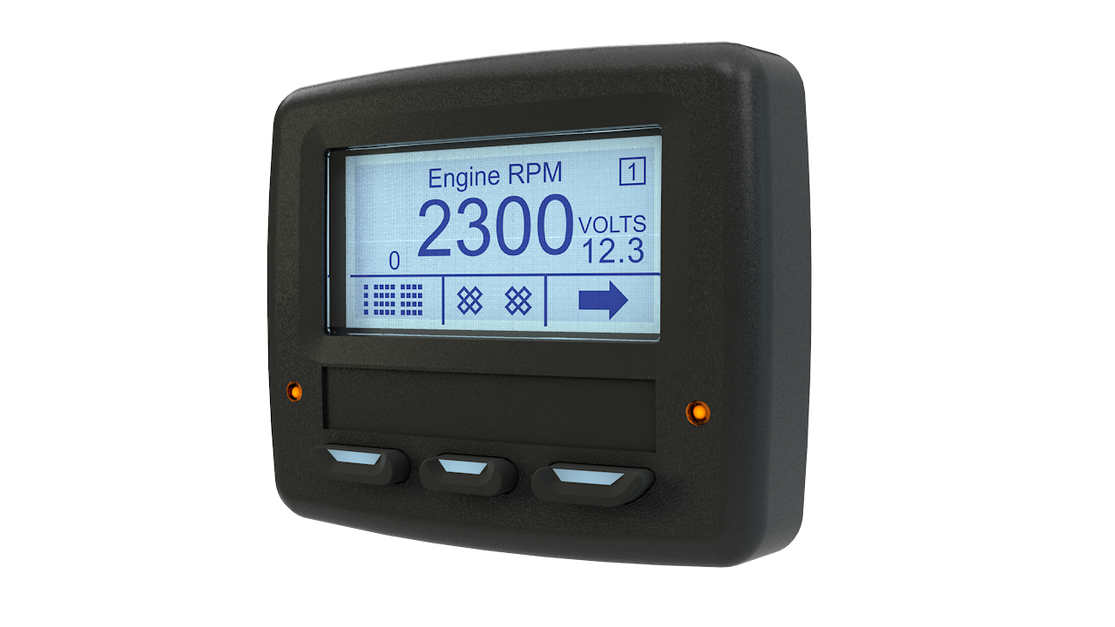

M2.3 2.3” Monochrome display


M2.3 - 2.3” Monochrome display

The M2.3 is compact in size despite the rugged design, and is ideally suited for use on vehicles and equipment such as small construction machines, generators, agricultural and industrial equipment, and offers easy integration into third party
CAN-based systems.

The M2.3 is the most compact model in our range of monochrome  CAN bus displays.

Marine NMEA2000 CANbus Displays, Gauges & Sensors
