Products

MCI804LX

Lighting Management Module 12/24VDC

The MCI 804LX module is equipped with an integrated programmable microcontroller used to control and dimm 4 different 12/24VDC lighting sources. The module is rated to work with voltage driven monochromatic LEDs (with or without driver added) or with a PWM signal (if 3-wires driver provided). It can also be used to control 12/24VDC incandescent and halogen lamps. Each channel handles up to 16A loads.

ISMY

Marine Smart Module

iSMY system is the first lighting control module for yacht with fully programmable multi-function outputs. It is through iSMY possible to build a system that meets all the needs of lighting control and handling management of cabins and rooms on board the yachts. The specific use and management of the APP make it a unique, versatile and innovative product.

K/Plate®

Top of range of all alphaplate collection. Made in aluminium and available in high ffinishes polished or matt, available in different colors.Layout and push buttons shape customize. A coordinated series of flush mounting boxes, compatible with the most popular civil series on the market, complete the range and allow the aesthetics of the control panel to be standardized with the branch control.

MCP 804LX

Lighting Management Module 12/24VDC

The MCP 804LX module is equipped with an integrated programmable microcontroller used to control and dimm 4 different 12/24VDC lighting sources, on positive.The module is rated to work with voltage driven monochromatic LEDs (with or without driver added). Each channel handles up to 10A loads.

RGB 804LX

Lighting Management Module LED RGBW

The RGB 804LX module is equipped with an integrated programmable microcontroller used to control and dimm 4 different 12/24VDC lighting sources. The module is rated to work with voltage driven monochromatic RGB, RGB-White or Double White LEDs (with or without driver added) or with a PWM signal (if 3-wire driver provided). It can also be used to control incandescent and halogen lamps, at 12/24VDC. Each channel handles up to 8A loads.

MGA 804LX

The MGA 804LX module is equipped with an integrated programmable microcontroller used to control and dimm lighting sources or devices, using 4 0-1/10V outputs. The module is rated to work with devices driven by a 0-1/10V signal, such as light circuits or motors and other system using this control management.

MCR 808LX

Relay Management Module

The MCR 808LX module is equipped with an integrated programmable microcontroller used to control in on/off mode different lighting sources, using 8 relay outputs. The module allows the control and the management of lighting circuits at 12/24 VDC/AC, 110/230VAC with a maximum absorption of 16A for each output. It can also be used to activate dry contact devices as dry contact boards for curtains automation management or TV lift.

MCR 808NX

Motors Management Module

The MCR 808NX module is equipped with an integrated microcontroller used to control motors, using 4 couple (up/down) of relay outputs with programmable software protection. The module is rated to work with electrical motors at 12/24VDC/AC and 110/230VAC (with a max absorption of 16A) or dry contact devices as motors dry contact control unit or TV lift.

SPD MOT

Motor Management Interface

The SPD MOT module is equipped with an integrated microcontroller used to control a motor, using a couple (up/down) of relay outputs with programmable software protection. The module can be located inside a standard box or behind a bulkhead. The module is rated to work with electrical motors at 12/24VDC/AC and 110/230VAC(with a max absorption of 5A) or dry contact devices as motors dry contact control unit or TV lift.

H/Plate®

Special surface finishes and treatments enrich the collection, which is available in configurations of up to four buttons (standard 502) or eight buttons (standard 503 and Slim version). Each unit offers fully customizable layouts, allowing for unique and tailor-made solutions that integrate seamlessly into different architectural and interior design contexts. The Hplate series provides a wide choice of button geometries: round, square, or rectangular, combined with multiple backlighting options

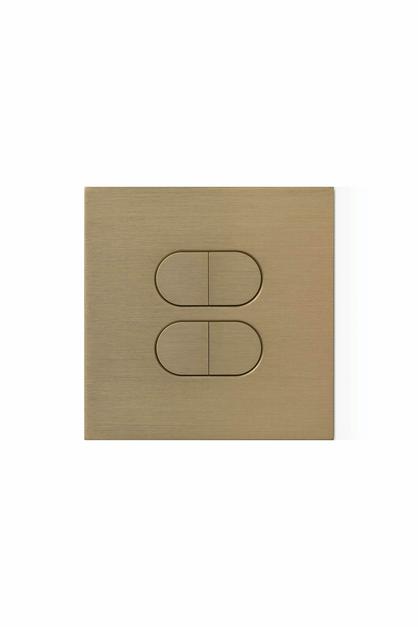

Q/Plate®

Made of aluminum, the QPlate® features smooth rounded lines with flush-mounted buttons. The pushbuttons can be single or double, with or without icons, and are individually removable, allowing for easy replacement at any time. Available in configurations of up to 4 buttons (standard 502) or 8 buttons (standard 503 – double 502), the QPlate® stands out for its versatility in colors and finishes, offering the possibility to combine different shades between buttons and frames.

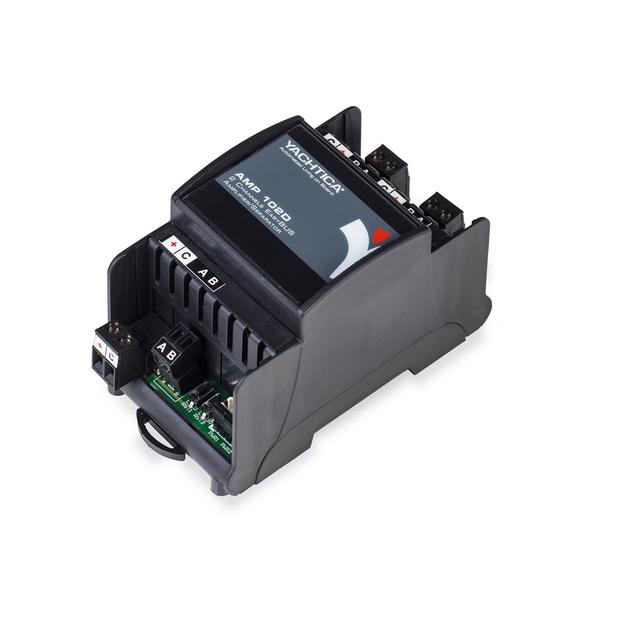

AMP 102I

2 Channels EasyBUS Amplifier/Separator

The AMP 102I is a module with integrated microprocessor that acts as insulator and amplifier EasyBUS signal. The module can be placed inside an electrical switchboard to separate the switchboard EasyBUS loop from two other loops.

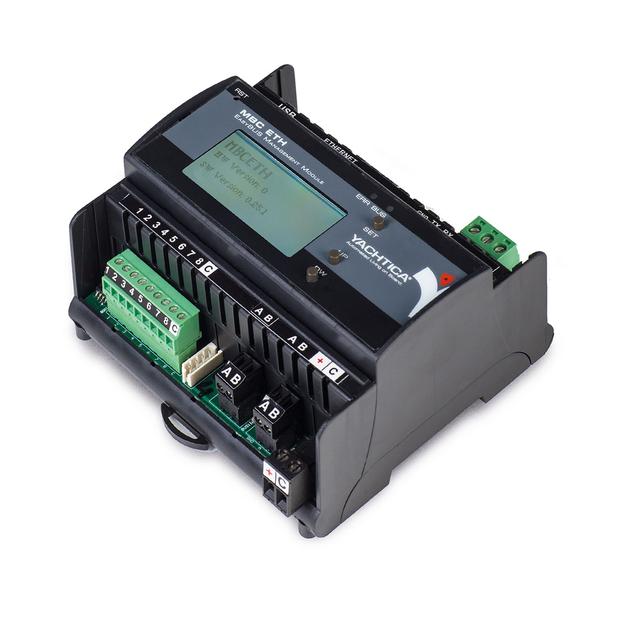

MBC ETH

EasyBUS Management Module

The MBC ETH is a module used to connect the Yachtica® system BUS EasyBUS to other devices/computer through an Ethernet or a RS-232 port. The module can be used to program Yachtica®’s modules connected to the BUS, with custom functionalities through the Yachtica® software Cabot. The module is also used as communication interface between monitoring and/or entertainment systems and Yachtica®. By the use of the Yachtica® APP it is possible to manage the system with a simple graphic interface.

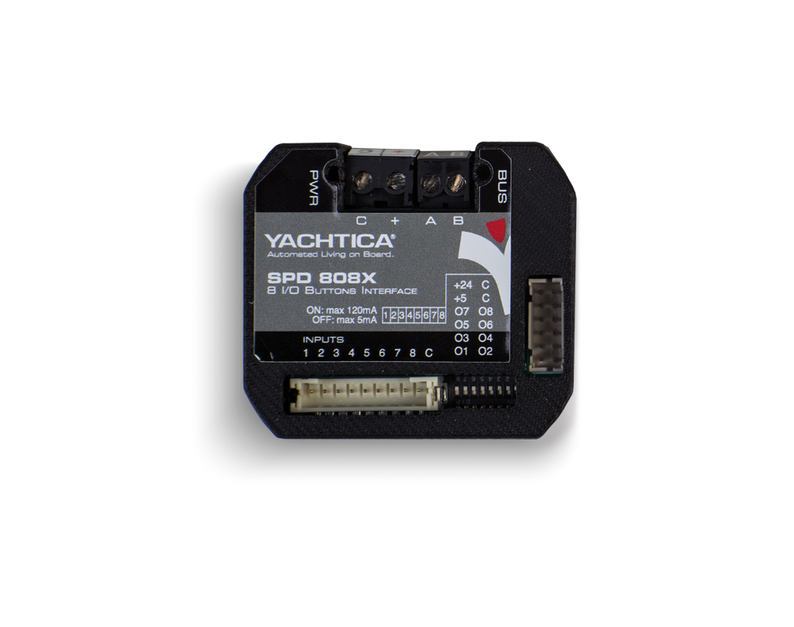

SPD 808X

8 I/0 Push Buttons Interface

The SPD 808X module is equipped with an integrated microcontroller used to manage 8 dry contact inputs and 8 TTL, or powered by an external power up to 24VDC, outputs. The module can be located inside a standard box or behind a bulkhead. The module is suitable for wiring up to 8 dry contact inputs from command button lighting, TV lifts, curtains and other devices connected to the EasyBUS system.

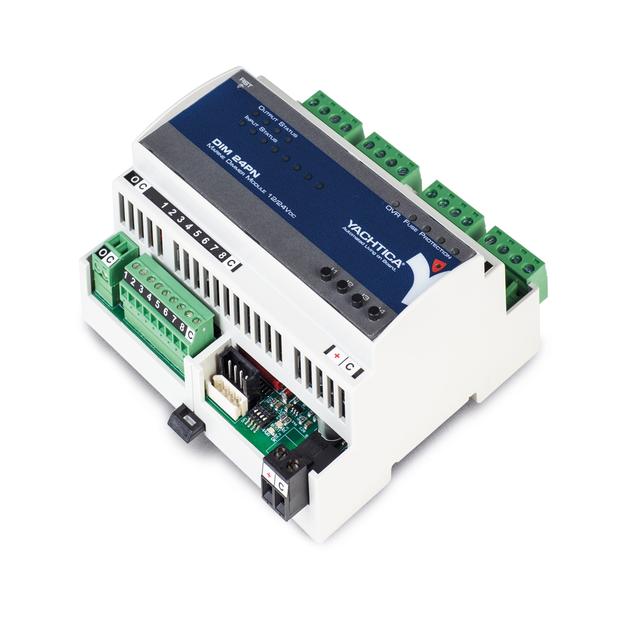

DIM 24PN (-F)

Marine Dimmer Module 12/24 VDC

The DIM 24PN module is equipped with an integrated microcontroller used to control and dimm 4 different 12/24VDC lighting sources. The module is rated to work with voltage driven monochromatic LEDs (with or without driver added) or with a PWM signal (if 3-wires driver provided). It can also be used to control 12/24VDC incandescent and halogen lamps. Each channel handles up to 16A loads.

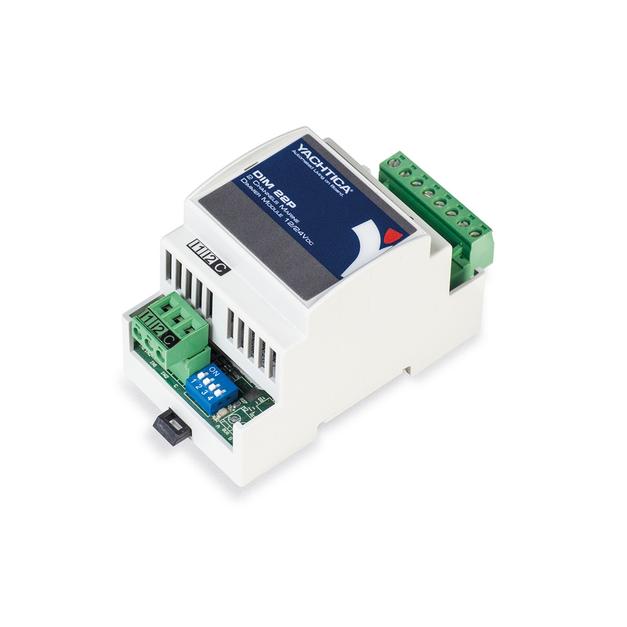

DIM22PN

2 Channels Marine Dimmer Module 12/24VDC

The DIM 22PN module is equipped with an integrated microcontroller used to control and dimm 2 different 12/24VDC lighting sources. The module is rated to work with voltage driven monochromatic LEDs (with or without driver added) or with a PWM signal (if 3-wires driver provided). It can also be used to control 12/24VDC incandescent and halogen lamps. Each channel handles up to 6A loads.
