SPDU - 66

SPDU-66: high-capacity 12 V DC distribution with 6 switch channels, 4 current-sense inputs, 6 digital inputs, and PICO/VIA + SK8 integration

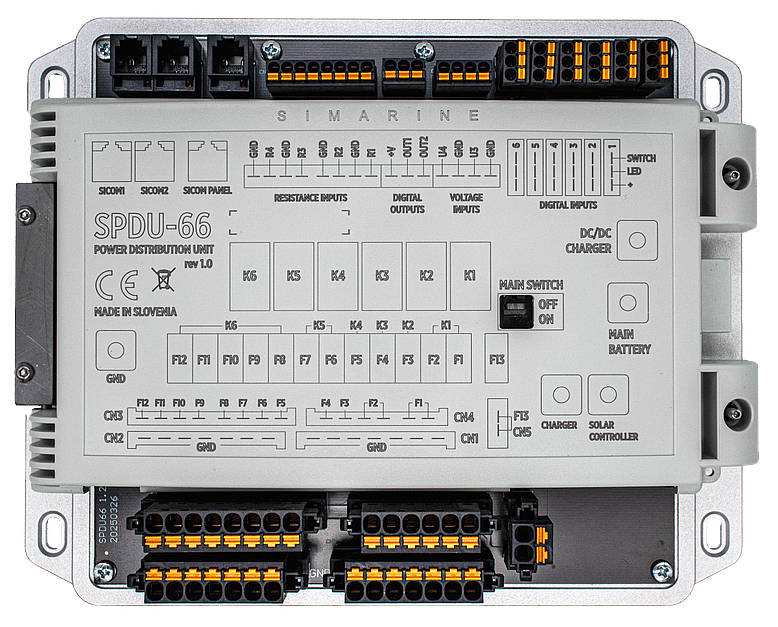

The SPDU-66 is Simarine’s high-capacity 12 V DC distribution unit. It provides 6 switchable outputs (combined limit 100 A), 4 current-measuring channels for solar, charger, main battery, and DC/DC (0–50 A), 6 digital inputs for external switches, plus voltage (U1–U4) and resistance inputs for tanks/temperatures (0–65 kΩ). Typical draw is ~15 mA at 12 V. It connects into Simarine systems and works with PICO/VIA and the SK8 keypad for expanded control. Dimensions: 200×160×42 mm.
