Online Catalogue

Sugatsune Europe GmbH

180SUS - New stainless steel (304) hinge with damper

- Soft and self-closing.
- All parts of the hinge, excluding the damper, are made
of stainless steel.
- 3D adjustment: Depth: ±2 mm (from centre of long hole),
vertical: ±2 mm (from centre of long hole),
overlay: ±2 mm (at 5 mm cut and 17 mm cover).
- Sold separately: stainless steel mounting plate.
- Recommended: Countersunk or round countersunk head wood /
tapping screw 3.5.

AZ-AT Touchless Multi-Purpose Lid with Sensor

- The lid opens automatically when the sensor detects. a hand. Thanks to its hands-free use, it is perfect for public areas and kitchens in vessels.
- Sensing distance can be adjusted up to 300 mm with dial on back.
- Turn the sensor off to disable automatic opening / closing (green light in sensor part normally lit).
- With soft-closing function.
- Plates on both sides of the opening offer protection
against hand pinching.
- Can be opened and closed manually in the case
of a power failure.
- CE-certified.

Sugatsune's new HDS-ARDC Self-Close Door Stay is coming soon

Specifications
- Body size 19 mm thickness
- 100,000 open/close cycles
- Width: 134.5 mm
- Opening angle at 95 degrees.
- Maximum Door Weight: 13,6 kg
- Recommend door size: W 300-900 mm / H 2000 mm (max)

Sugatsune introduces its ZweiL Collection: ULTRA PREMIUM HARDWARE | SUS316

- Zwei L | Beautiful Design, Artfully Sculpted Shine
The Zwei L brand originates from the German words “Zwei Lichter” or loosely translated “Two Lights”. The design concept entertains the perfect combination of a high precision mirror polished surface and a soft metallic satin finish, applying the famed golden ratio.
- Ultimate Mirror Polishing
This beautiful surface is handcrafted by skilled Japanese polishers, with a level of accuracy that creates an unparalleled mirror-like shine. The manufacturing process, named “Sallaz polishing” is also applied in the production of high-quality watches. Sugatsune enhanced and perfectionated this to cater for larger and more complex surface structures and objects.
- Silk-like Satin Finish
Our satin finish is truly remarkable, reflecting a lustrous shine akin to that of high-quality silk. It remains free from any warping, even on curves, and is finished uniformly in straight longitudinal lines.
- Japanese Craftmanship | Beautifully Distinct Edges Beauty lives in the finer details. The beauty of the edge between the two surfaces stands out with a sharp line without any noticeable distortions.
- Stainless Steel | SUS316
SUS316 is an especially corrosion resistant stainless steel, used in the most tough environments such as luxury yachts or other marine vessels. All products in the Zwei L series are made from SUS316, which offers excellent durability and will remain beautiful for many years.

Screenshot 2024-10-31 at 19.46.14.png

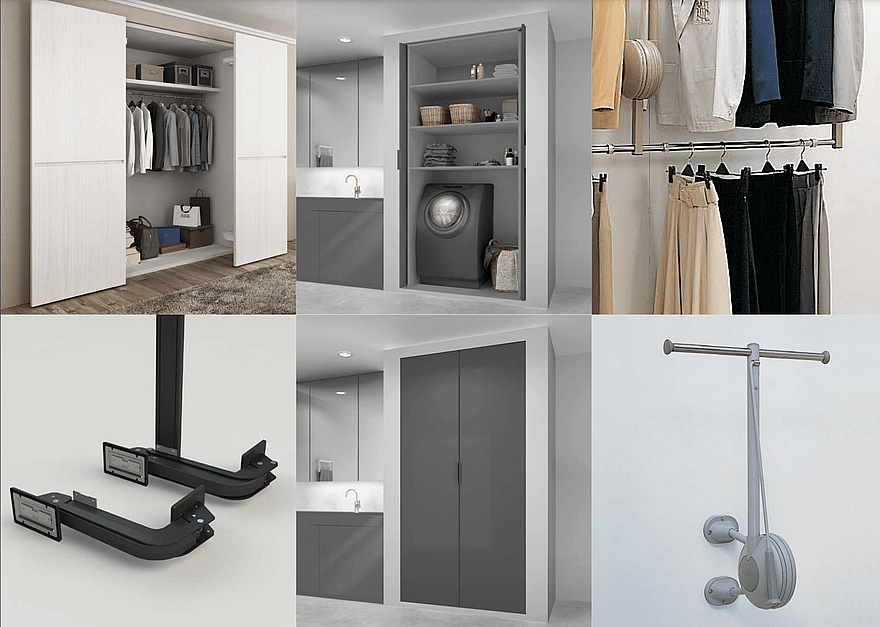

Space saving and unique door and wardrobe solutions. Lateral opening door systems, Pocket door systems, Sliding door systems, Folding Door Systems and more.

Wardrobe & Cabinet Door Hardware
