Rim Drive Technology
Electric Rim Drive motors and accessories.
Rim Drive Technology develops, manufactures, and sells Rim Drive motors and complementary products.
We specialize in the development, manufacturing, and sale of Rim Drive motors for the leisure boat, subsea, and industrial markets. Our products are sold worldwide in the B2B sector.
RDT products are lightweight, highly efficient, compact, and compatible with many other brands. Our motors are 100% electric and can be used as either main propulsion or secondary drives.
STAND NUMBER:
01.755
CATEGORIES:
Trading regions
Africa:
Algeria, Angola, Benin, Botswana, Bouvet Island, Burkina Faso, Burundi, Cameroon, Cape Verde, Central African Rep, Chad, Comoros
Americas:
American Samoa, Anguilla, Antigua & Barbuda, Argentina, Aruba, Bahamas, Barbados, Belize, Bermuda, Bolivia, Brazil, Canada
EVENT:
Metstrade 2025
ADDRESS:
Wanraaij, 33 6673 DM Andelst Netherlands
WEBSITE:
Products
View all products
POD motors

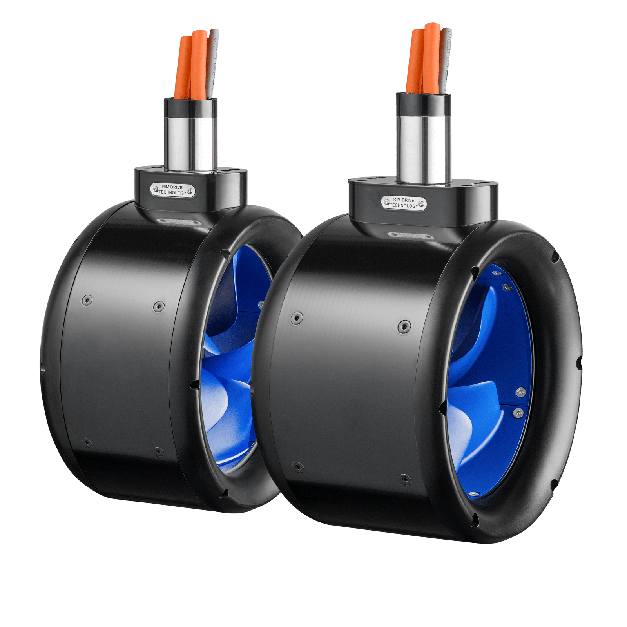

The better alternative for an inboard motor. 0.5 / 2.5 / 3.0 / 4.0 / 4.2 / 5.0 / 8.0 / 11.0 / 15.0 / 25.0 / 30.0 / 50.0 / 75.0kW available.
Rim Drive motor is the most simplified motor design which is ever made. But don’t confuse simplified with less powerful. 97% of the applications doesn’t require high speed capabilities. In general high efficiency is needed at cruise speed to guarantee a full-day of pleasure. Up to medium speeds a rim drive is the most efficient propulsion solution available in the market. The POD is also available as an subsea version.Entry level - Steerable POD

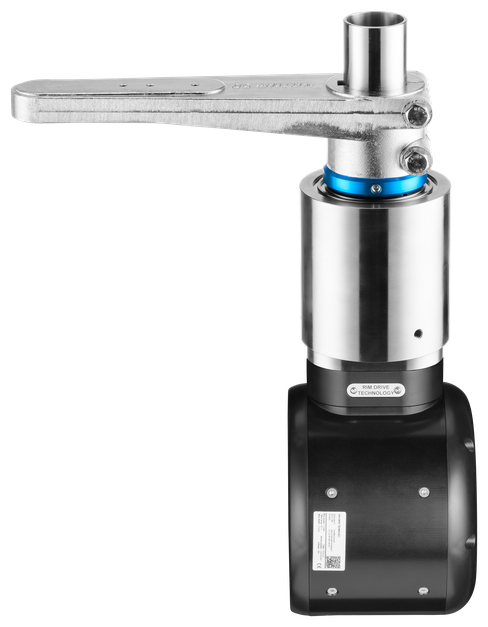

Maneuverability combined with unique rim drive motors. 2.5 / 3.0 / 4.0 / 4.2 / 5.0 / 8.0 / 11.0 / 15.0 / 25.0 / 30.0 / 50.0 / 75.0kW available.
Experience unparalleled acceleration compared to conventional alternatives, coupled with zero-turn steering. The steerable POD is rotatable up to 320 degrees with 160 degrees both ways for ultimate manoeuverability. All combined in a lightweight compact design. The entry level - steerable POD is designed for easy drop-in replacement, ensuring seamless integration without the need for major modifications.Steerable POD
Zero turn steering for ultimate maneuverability. 2.5 / 3.0 / 4.0 / 4.2 / 5.0 / 8.0 / 11.0 / 15.0 / 25.0 / 30.0 / 50.0 / 75.0kW available.

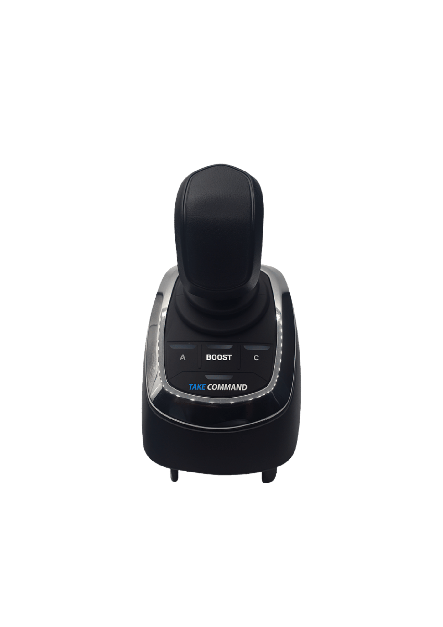

With a joystick steering system, you can effortlessly and intuitively control your boat by simply moving the joystick in the desired direction. It provides precise maneuverability and allows easy turning. The boat control is electronically managed through a Controller Area Network system. This advanced system utilizes digital signals to optimize engine control and steering behavior, resulting in accurate, responsive, and reliable boat steering.Entry level - Outboard

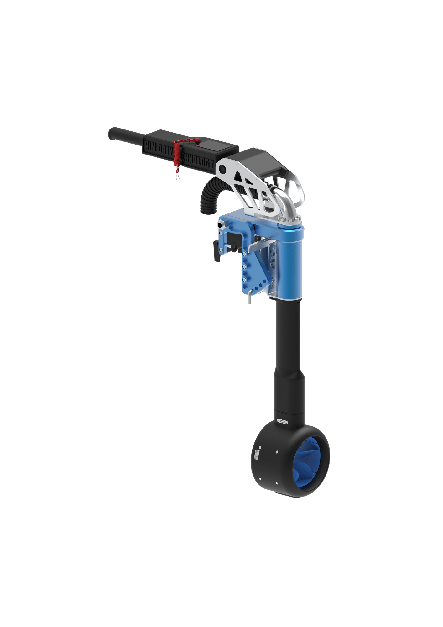

The perfect solution for operators who are looking for an affordable system. 2.5 / 3.0 /4.0 / 4.2 / 5.0 / 8.0 / 11.0 / 15.0kW available.
Meet the Entry Level Outboard, the perfect solution for operators who are looking for an affordable solution with all functionalities they are looking for. The motor controller is included and will be delivered separately. The trim and tilt bracket is suitable for all standard steering cylinders available on the market. Therefore, it is also easy to install for refitting your boat! The bracket contains five trimming positions to achieve the most efficient way of consuming your onboard power.Steerable Outboard

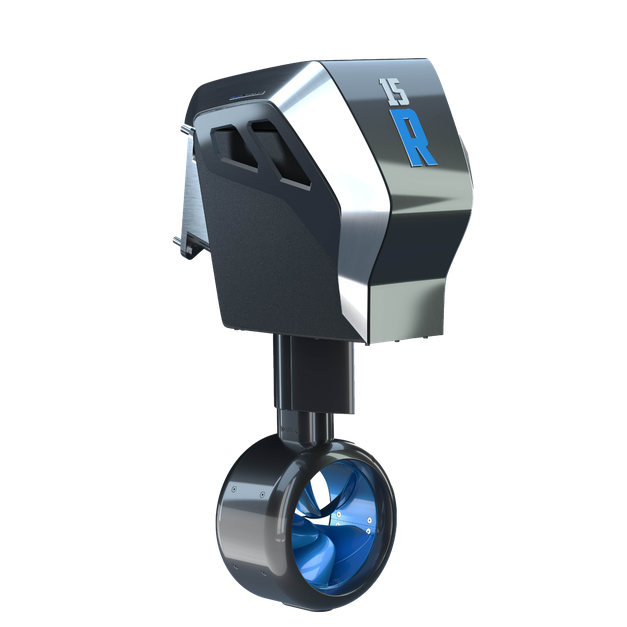

Zero turn steering as an outboard solution. 11.0 / 15.0kW available.
This unique motor offers 360-degree propulsive power, with only the underwater housing steering while everything above water remains stationary. Thanks to its smart design, the Steerable Outboard can be directly mounted on existing outboard transoms, with no need for additional steering cylinders or complex installations. Compact yet powerful, all technology is neatly integrated into the outboard, including controllers and wiring.Standard bow thrusters

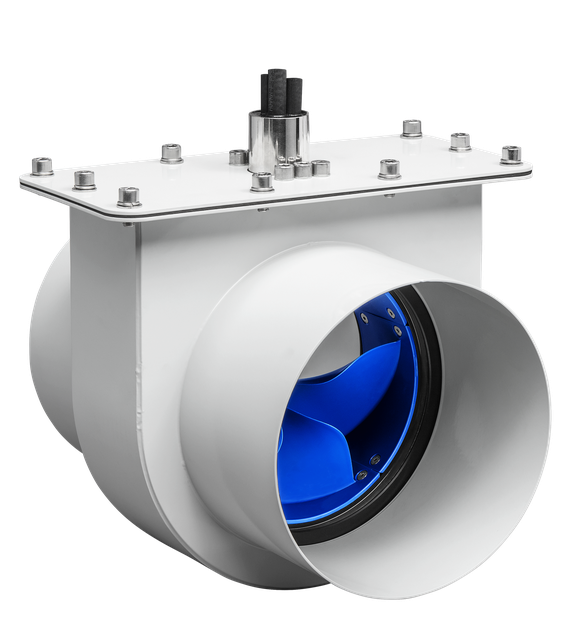

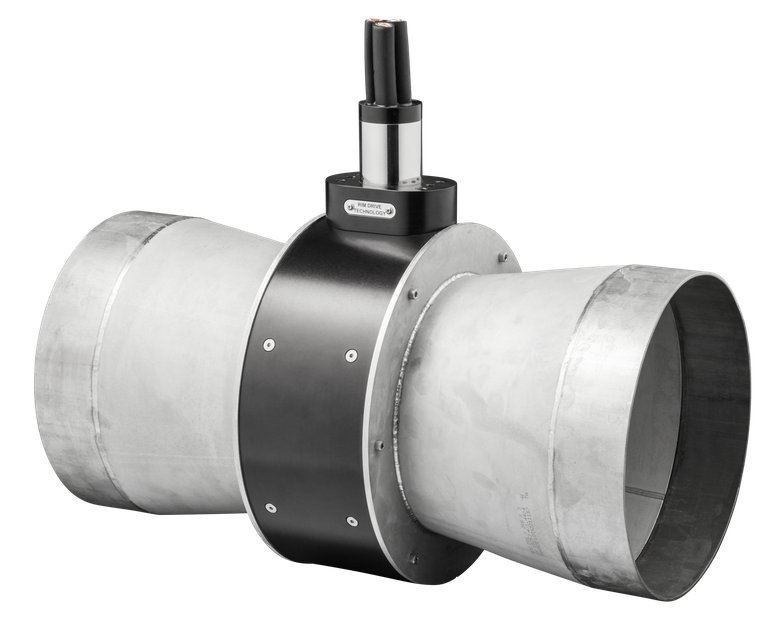

Best for continuous running times. 0.5 / 2.5 / 3.0 / 4.0 / 4.2 / 5.0 / 8.0 / 11.0 / 15.0 / 25.0 / 30.0 / 50.0 / 75.0kW available.
Our standard thruster is the most quiet bow thruster on the market. The bow thruster is efficient and also available as a stern thruster.Immediate acceleration sets it apart, while a compact and lightweight design makes this product truly ideal for the most space-conscious installations. With only one rotating part, maintenance is minimized. Plus, all motors are completely waterproof with an IP68 rating. This standard thruster is also available as bow thruster box and tunnel set thruster.12V and 48V batteries

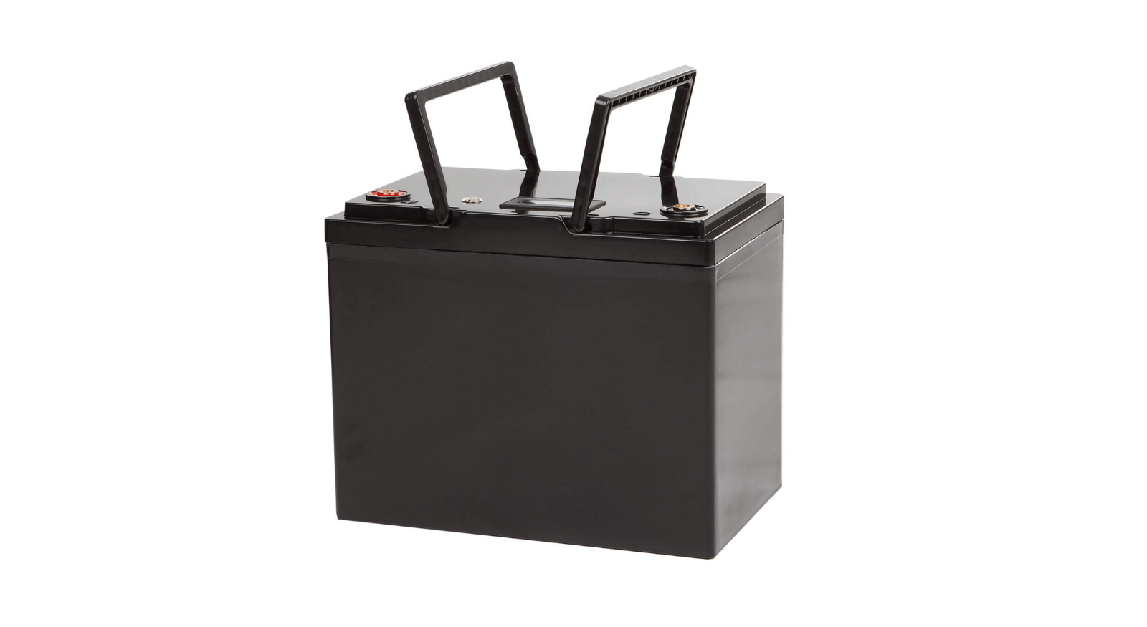

The best solution for full day operation.
The high energy density, combined with no maintenance costs and affordable pricing makes these batteries the perfect candidate for those who wish to be powered electric. To provide the best customer experience, our batteries work efficiently with all our products.
News
Downloads
Catalogue - Rim Drive Technology
Welcome to our catalogue, featuring our complete range of electric motors and accessories. In this document, you will find detailed information on all our products, designed to deliver high performance and efficiency. Whether you're looking for the perfect motor or complementary accessories, this catalogue has everything you need to power your next project.
